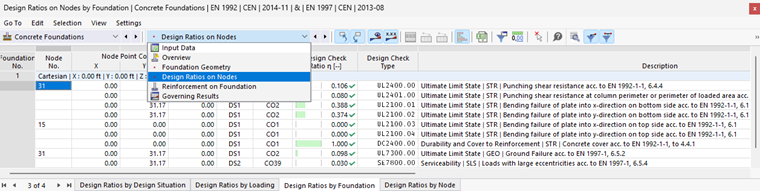

After calculating the results, the Concrete Foundations table category contains new subcategories.
These categories with the respective worksheets are described in the following chapters:
- Overview
- Foundation Geometry
- Design Ratios on Nodes
- Reinforcement at foundation (if defined)
- Governing Results

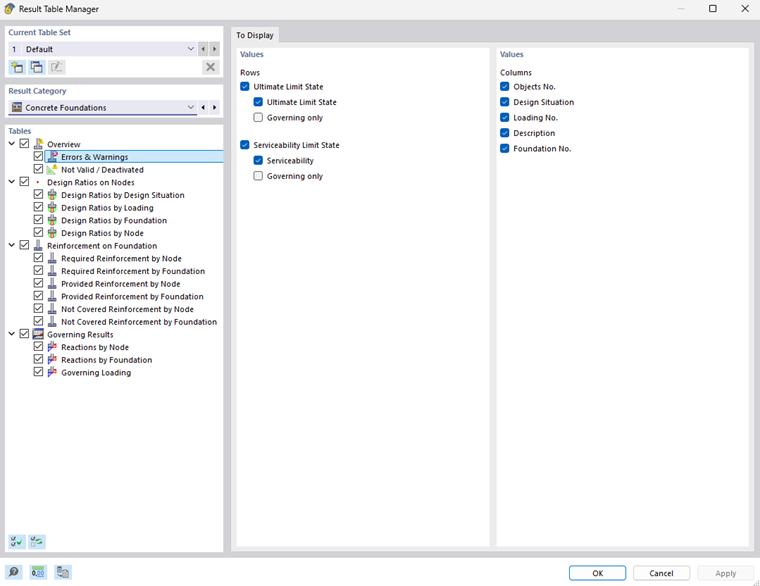

Result Table Manager
You can also use the
button to open the "Result Table Manager" dialog box. There, you can control which tables and tabs are displayed. Furthermore, options for rows and columns are visible in the individual tables.
Buttons in Table Toolbar
The toolbar of the result tables provides you with buttons that you can use to display and evaluate the results.
| Button | Function |
|---|---|
|
Selects an object graphically to display its results in the table |
|
Opens the Design Checks Details dialog box |
|
Shows or hides the ultimate limit state design results |
|
Shows or hides the serviceability limit state design results |
