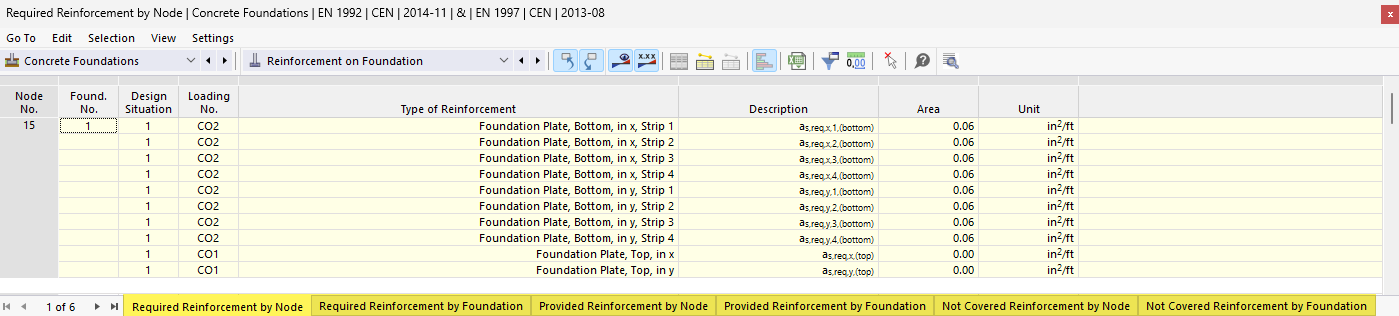

The result tables of the Reinforcement on Foundation category contain the reinforcement requirements for the calculated foundations resulting from the internal forces of the design situation for the ultimate limit state. The results can be displayed either by node or by foundation.
Design Situation
The number of the governing design situation is specified here.
Loading No.
This column indicates the number of the load case that is governing for the calculation of the reinforcement.
Type of Reinforcement
This column describes which area of the foundation the reinforcement is designed for. Furthermore, it is indicated in which direction and position the reinforcement is to be arranged.
Description
The reinforcement descriptions are shown here as symbols.
Surface
This column shows the required steel cross-section areas.
Unit
The last column shows the unit of the reinforcement area.

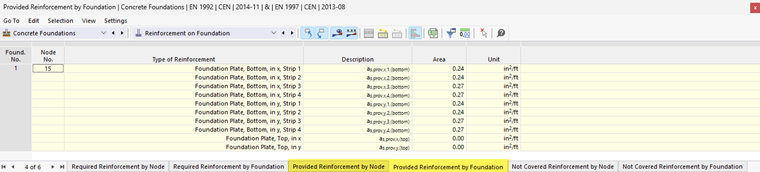

In the other tables, you can see the provided reinforcement by nodes or foundation.
