Vertical stirrups

Similarly to the procedure described for Horizontal Stirrups, you can arrange the vertical stirrups by number or spacing.

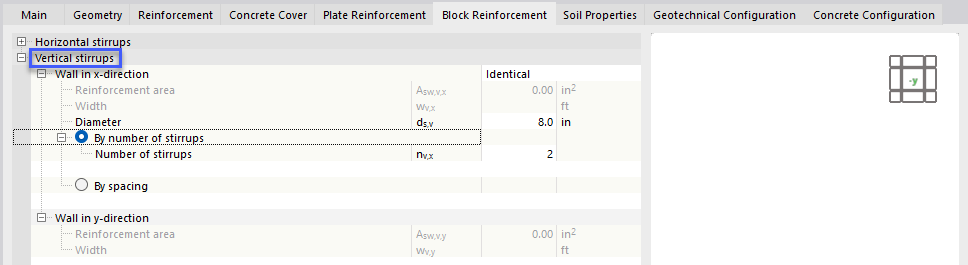

Concrete Foundations | Block Foundation - Vertical Stirrups

Diameter

First, select the diameter_ds,v of the vertical stirrups.

Alignment method

You have two options to arrange the stirrups:

• By number : Enter the desired number of vertical stirrups n_v,x.
• By spacing : Define the stirrup spacing s_v,x for the uniform distribution of the stirrups.
