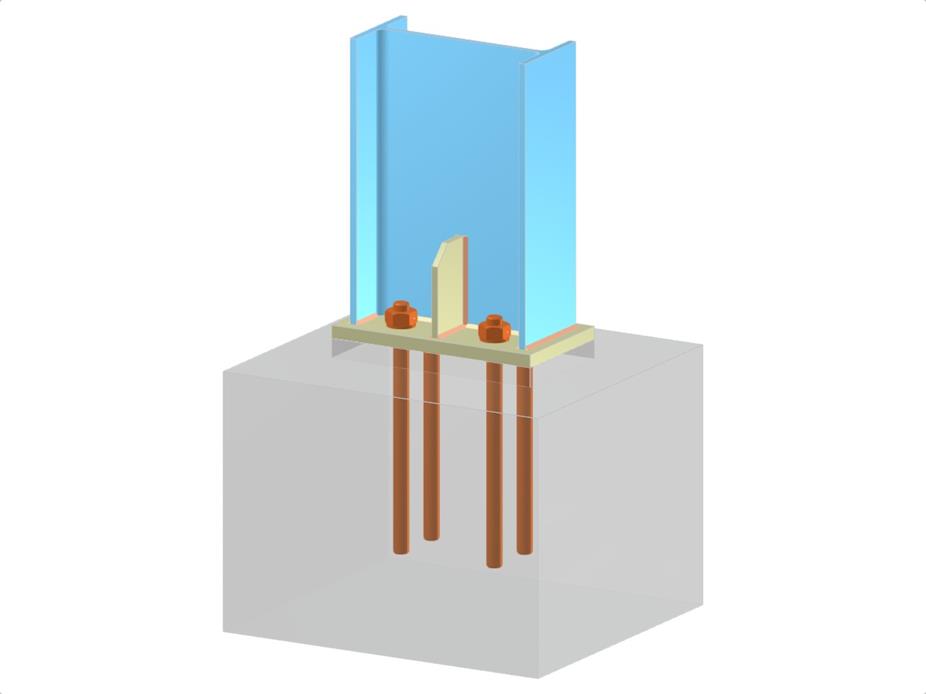

This model focuses on the structural design of a column base that includes a base plate, reinforcing ribs, and anchoring components. It utilizes an I-section for enhanced stability and support, demonstrating key principles in foundation engineering. Such configurations are crucial for ensuring robust and reliable connectivity between structural elements and their foundations.
Column Base
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.042 tons |
| Dimensions (Metric) | 0,000 x 1,000 x 0,000 m |
| Dimensions (Imperial) | 0 x 3.28 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
