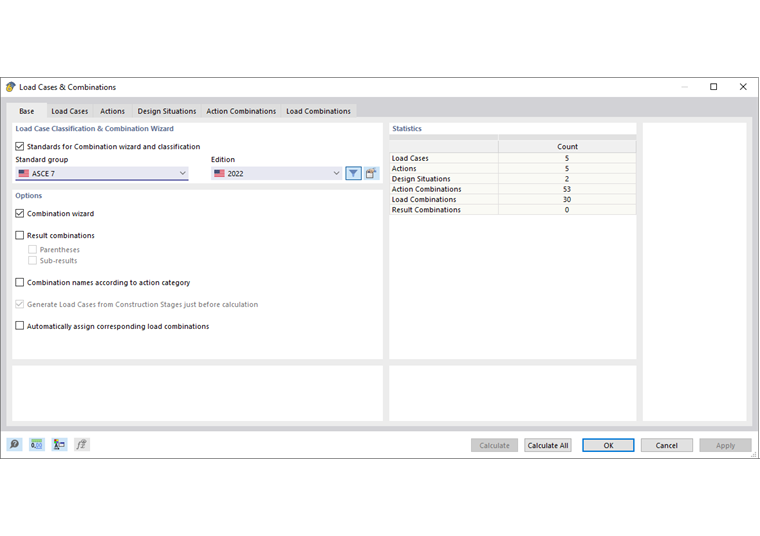

The Base tab manages the general settings for classifying and combining load cases. You can define whether the load cases are to be combined automatically, and according to which standard this should be done.
Load Case Classification and Combination Wizard

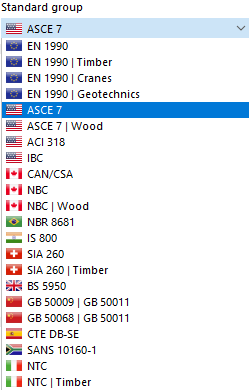

The 'Standards for Combination wizard and classification' check box is activated by default. It allows you to assign the load cases to action categories. On this basis, the load cases are combined according to certain standard specifications. The standard you defined in the model's Base Data is preset (see the image Selecting National Annex ). If necessary, you can select a different standard in the 'Standard group' list.
Depending on the set of rules, you can select either the standard's annex or version in the 'National annex | Edition' list.
Options
In this dialog section, you can define how load cases are to be combined.
Combination wizard
The combination wizard is activated by default. It supports you in the task of classifying the load cases in compliance with standards and of superimposing them in action combinations, taking into account the design situations. Load combinations are created automatically when scrolling through the individual tabs of this dialog box. They form the basis for the designs in the design add-ons.
You can check the parameters of the combination wizard in the 'Edit Combination Wizard' dialog box (see the Combination Wizards chapter).
Result combinations
Load combinations are usually generated for the structural analysis in order to correctly determine nonlinear effects. Result combinations, however, are needed to superimpose the results of load cases or combinations, as this may be necessary for dynamic analyses, for example.
If you select the 'Result combinations' check box, you can define result combinations manually in an additional tab of this dialog box (see the Result Combinations chapter).
If you activate the 'Parentheses' check box, you can define a result combination in a more complex way by nesting criteria (see the image Result Combination with Sub-Combinations ). The 'Sub-results' allow for additional combination specifications that can be used for the design.
Combination names according to action category
This check box controls whether the names of action combinations are displayed with the names of the actions ("1.35 * E1 + 1.50 * E2 + 0.75 * E3") or those of the action categories ("1.35G + 1.50QI A + 0.75Qs").
Statistics
This dialog section provides an overview of the available load cases and combinations created in the individual tabs.
