Rotate

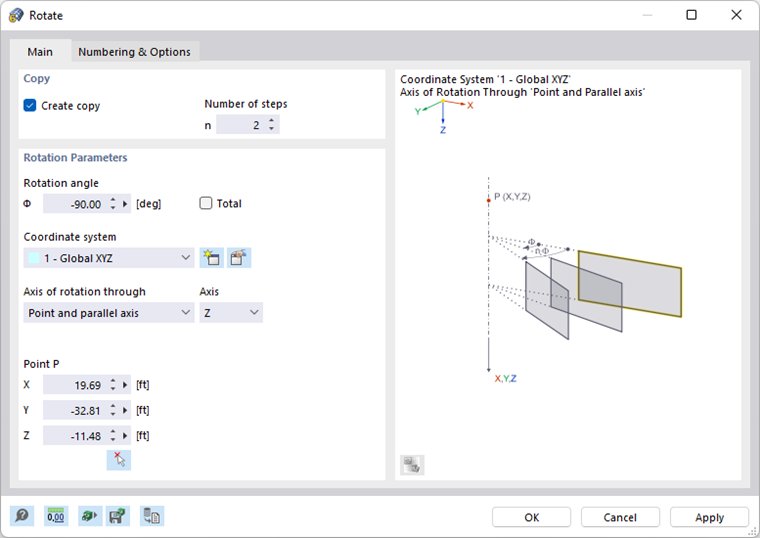

Select the model, load, or guide objects you want to rotate. Then, click the Rotate button (see the image Modeling Tools ). In the 'Rotate' dialog box, specify whether the objects are to be copied when rotating, and define the parameters.

Main

The Main tab manages the basic parameters for rotating objects.

Copy

If there is no tick set in the 'Create copy' check box, the selected objects will be rotated. If you want to create one or more copies, tick the check box. Then, enter the 'Number of steps' that describes the quantity of copies.

Rotation Parameters

Enter the 'Rotation angle' Φ. The angle is related to a coordinate system that is oriented clockwise. When creating several copies, the 'Total' check box controls whether the angle is applied between the individual copies or between the original and the last copy.

Define the 'Coordinate system' in which the objects are to be rotated. You can select a User-Defined Coordinate System from the list or create a new one using the New button.

In the 'Axis of rotation through' list, there are two options for defining the axis of rotation:

  • Point and parallel axis: The rotation axis runs parallel to an axis of the specified coordinate system. Select the 'Axis' in the list to the right, and enter 'Point P' that lies on the rotation axis.
  • 2 points: The axis lies anywhere in space. Enter the coordinates for 'Point P1' and 'Point P2' to define the rotation axis. Use the Select Two button to define the points graphically.

Numbering & Options

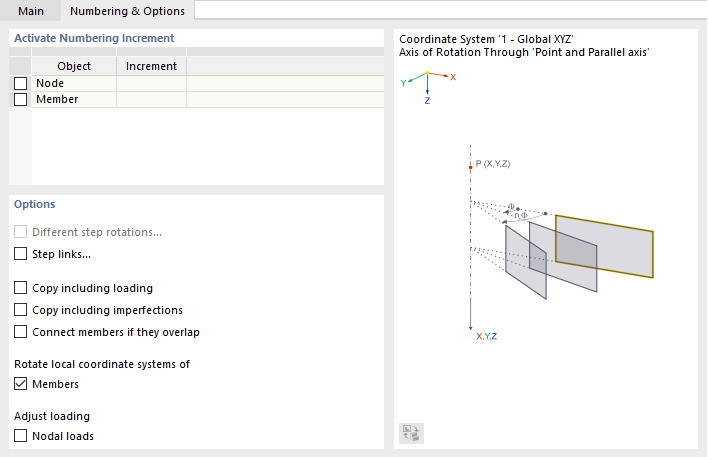

The Numbering and Options tab is only displayed when copying. Here, you can influence the numbering of new objects and make useful settings for copying.

The functions of the tab are described in the Move and Copy chapter. In addition, two check boxes are available that specifically affect the rotation.

The 'Rotate local coordinate systems' check box is primarily relevant when rotating vertical members. The setting controls whether the axes are also rotated or realigned, taking into account general specifications (see the Section chapter).

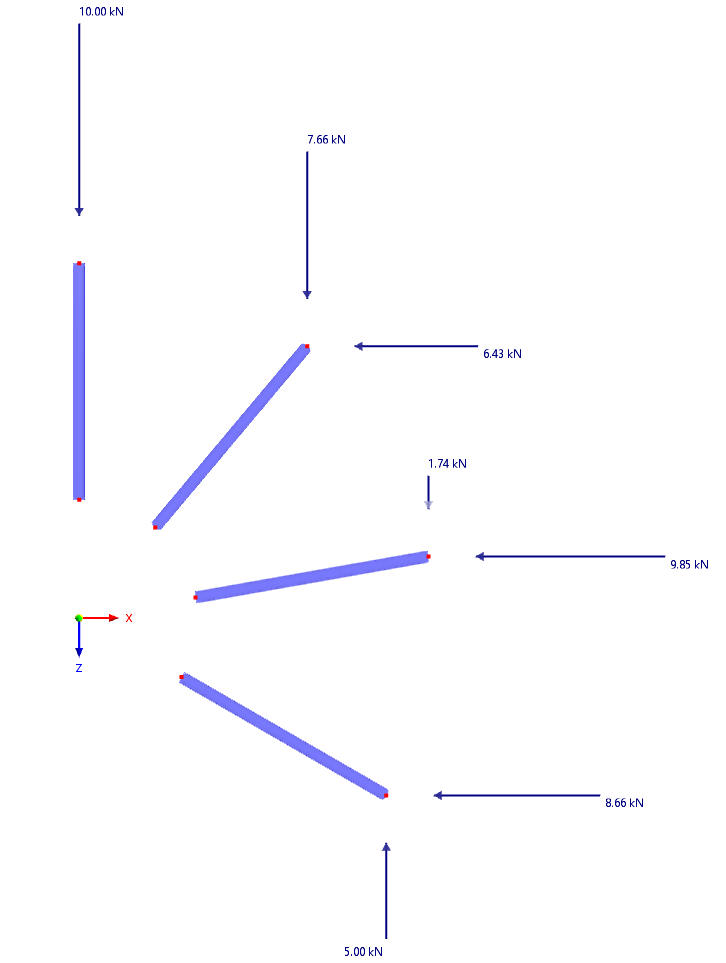

If the 'Adjust loading' of the 'Nodal loads' check box is ticked, the direction of nodal loads defined in the global coordinate system is changed when copying. RSTAB converts the loads to the new position in the same manner as local concentrated loads. If the check box is not activated, the global load direction is kept.

Info

Define the Nodal Loads via the Components load type so that they can be adjusted.

Step Rotations

The Step Rotations tab is displayed if at least two copies are specified and the 'Different step rotations' check box in the Numbering and Options tab is selected.

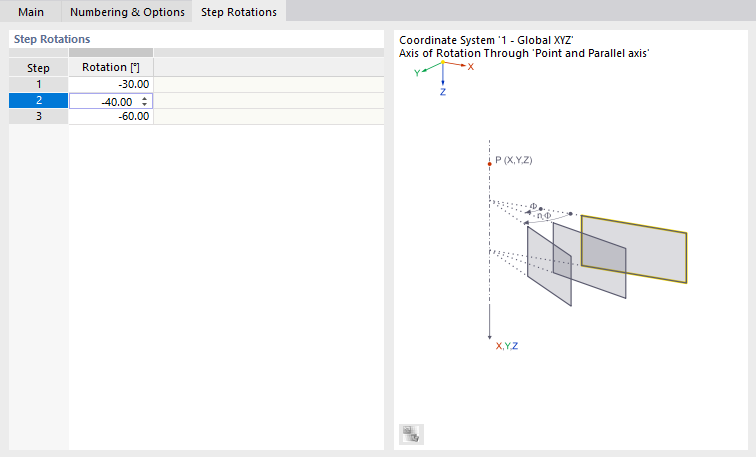

In the table, you can individually define the angles of the 'Rotation' between the copies.

Step Links

The Step Links tab is displayed if the 'Step links' check box in the Numbering & Options tab is selected. The functions are described in the Move and Copy chapter.
