Individually

With the 'Renumber | Individually' function you can adjust the numbers of model objects one by one by clicking them in the work window. Changing the numbering of load objects or load cases is not possible by using the function. However, you can renumber the latter with the Shift function.

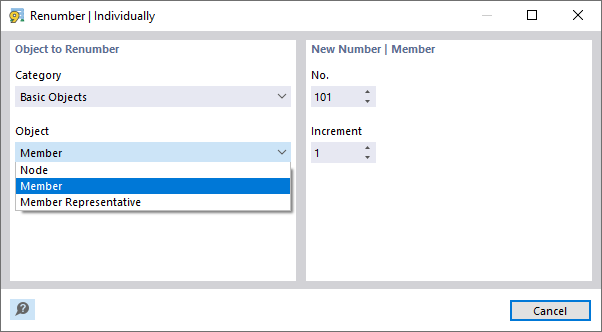

In the 'Object to Renumber' dialog section, use the drop-down lists to specify which 'Category' of model objects and which 'Object' you want to renumber.

In the 'New Number' dialog section, enter the starting number for the new numbering and specify the intervals ('Increment') by which the objects are to be numbered in ascending order.

Click the relevant objects one after the other in the work window. The numbering will be adjusted based on the specified starting number and the 'Increment'.

You can change the 'Category' at any time without closing the dialog box and continue renumbering. Pay attention to the new start number.

Info

Only free numbers are allowed to be used when renumbering individual objects.
