The model shows a column with a load that is parameterized depending on the node height. The parametric input is used to define load parameters precisely by obtaining values from RFEM tables (RFEM 5 using the $ sign, RFEM 6 using object properties) and linking them to model data. The integrated formula editor allows for fine-tuning of the load distribution, while the graphical display illustrates the spatial adjustment of the nodes. In addition, a beam is used as a structural element to optimize the detailed control of the load parameters.
Model Used in
Overall
This page has 0 user ratings.
| 5 star | ||
| 4 star | ||
| 3 star | ||
| 2 star | ||
| 1 star |

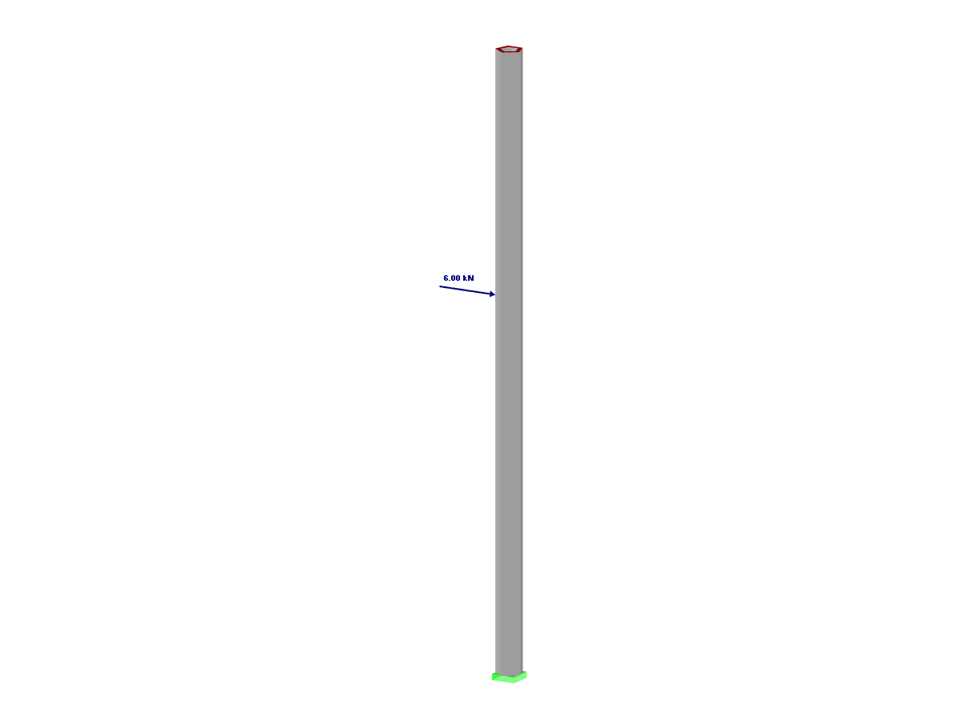

Height-Dependent Nodal Load Column
| Number of Nodes | 3 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Number of Load Cases | 1 |
| Total Weight | 2.313 t |
| Dimensions (Metric) | 0.215 x 0.215 x 10.057 m |
| Dimensions (Imperial) | 0.71 x 0.71 x 33 feet |
| Program Version | 5.25.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
