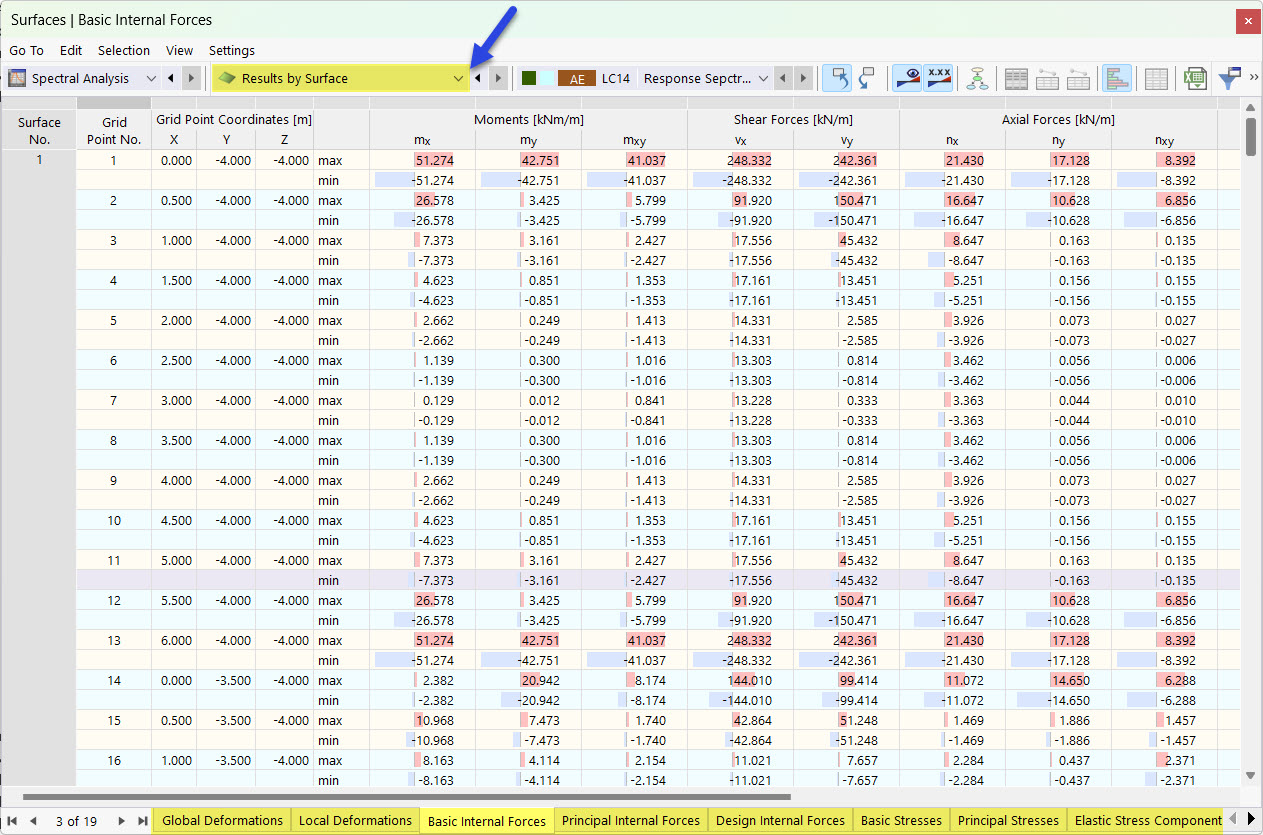

The Results by Surface category of the table results (see the image Subcategory for Spectral Analysis Results ) lists the numerical results that are available in the grid points of the individual surfaces. The results are sorted by a surface number.
Deformations
The resulting deformations of surfaces are shown in relation to the global axes as well as the local surface axes. You can control the graphical display by using the navigator categories "Global Deformations" and "Surfaces" → "Local Deformations" (see the image Spectral Analysis Results ). The table lists the corresponding results in the "Global Deformations" and "Local Deformations" tabs.
Internal Forces
The surface internal forces are subdivided into three categories:
- Basic Internal Forces: Internal forces and moments in the direction of the surface axes
- Principal Internal Forces: Internal forces and moments in the direction of the principal axes
- Design Internal Forces: Internal forces and moments according to DIN V ENV 1992‑1‑1 [1], Appendix 2, A 2.8, and A 2.9
Define the result type for the graphical display in the "Surfaces" → "Internal Forces" category in the navigator. The table lists the surface internal forces in the tabs "Basic Internal Forces", "Principal Internal Forces", and "Design Internal Forces".
Stresses
The surface stresses are subdivided into four categories:
- Basic Stresses: Stresses in the direction of the surface axes
- Principal Stresses: Stresses in the direction of the principal axes
- Elastic Stress Components: Stress components from bending moments and membrane forces
- Equivalent Stresses: Combination of basic stresses according to von Mises, Tresca, Rankine, or Bach
Define the result type for the graphical display in the "Surfaces" → "Stresses" category in the navigator. The table lists the surface stresses in the tabs "Basic Stresses", "Principal Stresses", "Elastic Stress Components", and "Equivalent Stresses".
Strains
The surface strains are subdivided into four categories:
- Basic Total Strains: Strains in the direction of the surface axes
- Principal Total Strains: Strains in the direction of the principal axes
- Maximum Total Strains: Extreme values of strains
- Equivalent Total Strains: Combination of basic total strains according to von Mises, Tresca, Rankine, or Bach
Define the result type for the graphical display in the "Surfaces" → "Strains" category in the navigator. The table lists the surface strains in the tabs "Basic Total Strains", "Principal Total Strains", "Maximum Total Strains", and "Equivalent Total Strains".
Contact Stress
For surfaces with a surface support, you can display the "Contact Stresses" in the navigator and in the table.
