Overview

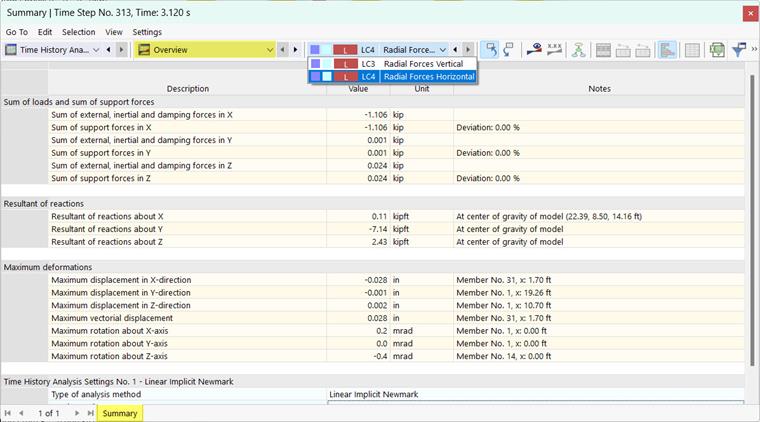

The Overview table result category provides a brief summary of the dynamic analysis: In addition to the sums of loads and support forces, the "Summary" tab lists the maximum deformations for the specified time step available in the Navigator – Results .

Info

If a result envelope is displayed, the sums of loads and support forces are zero due to the results.

In the table title bar, you can switch between the results of the time history analysis load cases.
