Summary

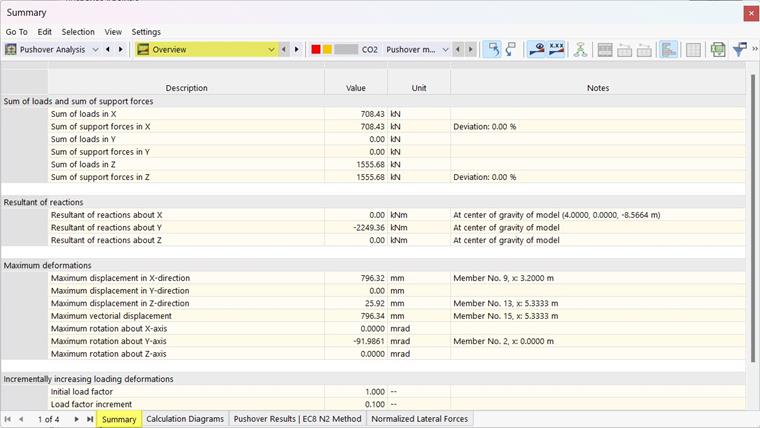

The Summary table in the "Overview" result category contains a brief summary of the pushover analysis. It lists the sums of loads and support forces, the resultant of reactions, the maximum deformations, and the parameters of the incrementally increasing load deformations.

Info

The values in the table refer to the target displacement, not to the load increment set in the work window.

In the table title bar, you can switch between the results of the load combinations for which the pushover analysis has been performed.
