Results by Member

The table result category Results by Member lists the results of the pushover analysis that are available for members. The results in both tabs are sorted by member numbers.

Local Deformations

You can display the local member deformations graphically using the "Members" → "Local Deformations" navigator category (see the image Selecting Local Member Deformations in Navigator ). The values of the member deformations are listed in the "Local Deformations" tab of the table.

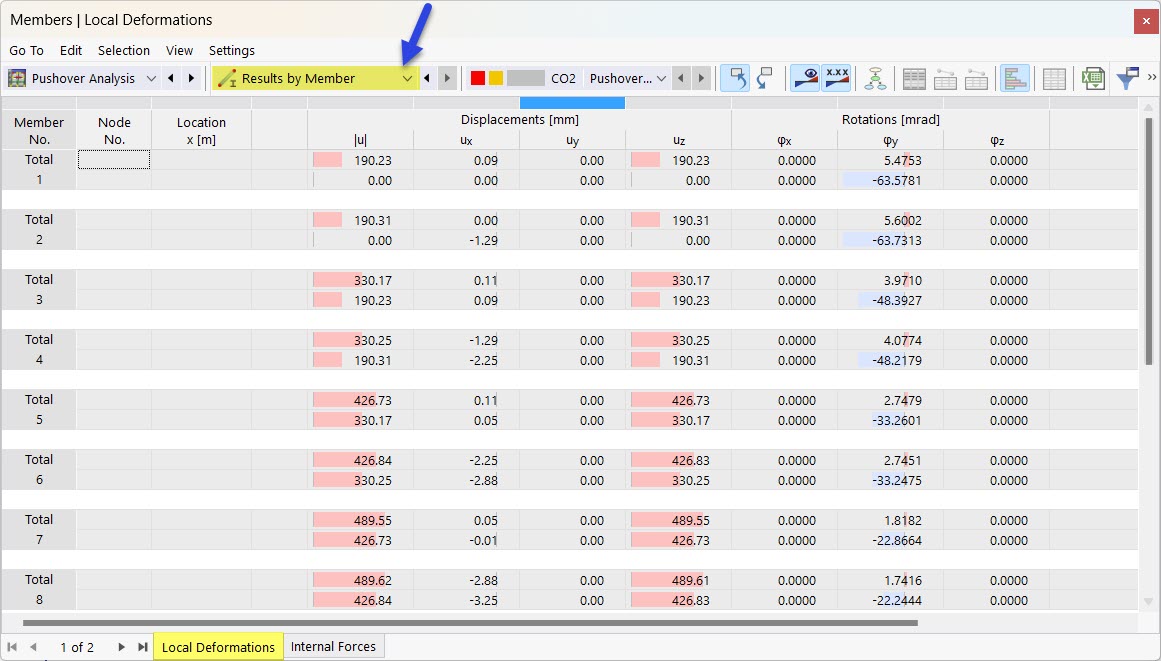

Local Member Deformations in Table for Pushover Analysis

The following results are available:

• Absolute total displacement |u|
• Lokale Verschiebungen u_x, u_y und u_z
• Local rotations φ_x, φ_y, and φ_z

The deformations refer to the local member axes.

Internal forces

You can display the internal forces of members graphically by using the "Members" → "Internal Forces" navigator category.

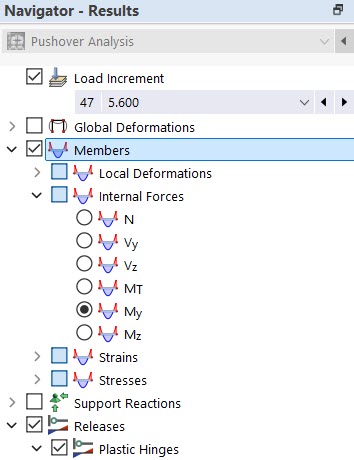

Selecting Member Internal Forces in Navigator

In the "Internal Forces" tab of the table, the internal forces of members are displayed numerically.

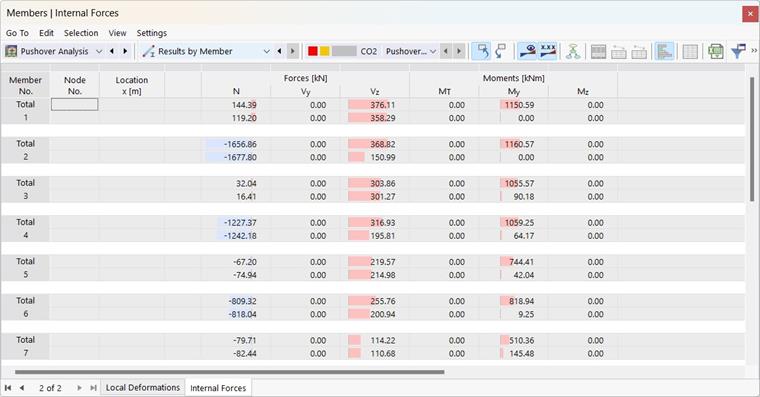

Member Internal Forces in Table for Pushover Analysis

The following results are available:

• Forces N, V_y, and V_z
• Moments M_T, M_y, and M_z
