Results by Surface

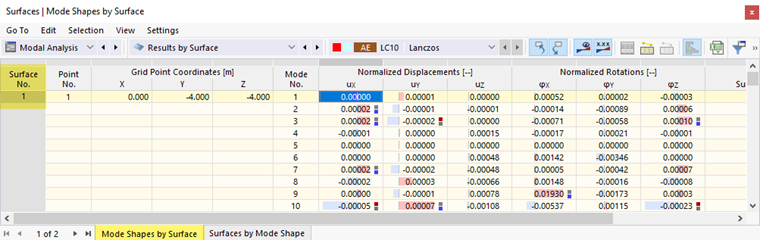

In the Results by Surface category of table results (see the image Subcategory for Modal Analysis Results ), the numerical results of mode shapes are listed with the corresponding normalized displacements and rotations that are available in the grid points of the individual surfaces. The results are sorted by a surface number in the "Mode Shapes by Surface" tab.

The normalized displacements and rotations are without dimensions due to the scaling process.

Info

The maximum value of u and φ depends on the scaling of mode shapes.

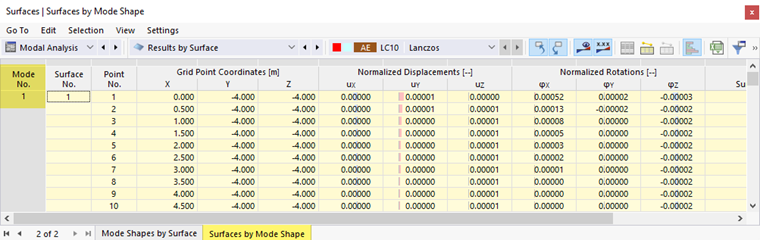

In the "Surfaces by Mode Shape" tab, the surface results are listed by a mode shape.

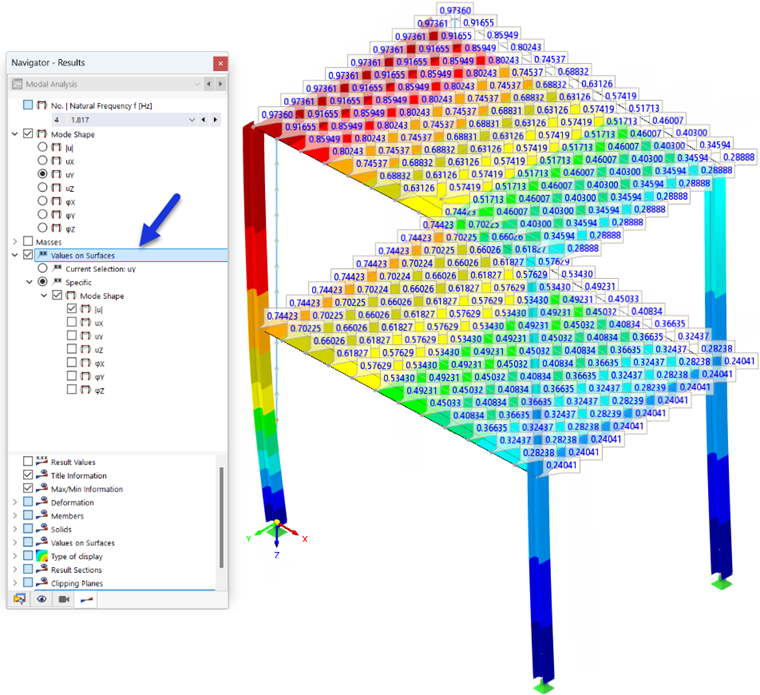

You can also display the surface result values graphically using the Values on Surfaces category in the navigator.

As in the table, the values shown in the grid points of the individual surfaces.
