Results by Member

The table result category Results by Member lists the results of the time history analysis that are available for members. The results in the individual tabs are sorted by member numbers.

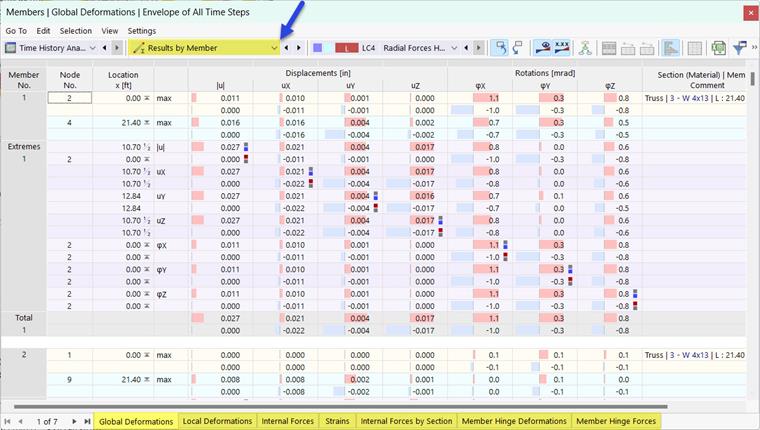

Results by Member in Table for Time History Analysis

Global Deformations

You can display the member deformations graphically using the "Global Deformations" navigator category (see the image Results of Time History Analysis ). In the "Global Deformations" tab of the table, the member deformations are displayed numerically (see the image Results by Member in Table). The results are as follows:

• Absolute total displacement |u|
• Displacements u_X, u_Y, and u_Z
• Rotations φ_X, φ_Y, and φ_Z

The deformations refer to the axes of the global coordinate system.

Local Deformations

You can display the local member deformations graphically using the "Members" → "Local Deformations" navigator category (see the image Selecting Local Member Deformations in Navigator ). The values of the member deformations are listed in the "Local Deformations" tab of the table. The results are as follows:

• Absolute total displacement |u|
• Local displacements u_x, u_y, and u_z
• Local rotations φ_x, φ_y, and φ_z
• Cross-section warping ω (provided that the Warping Torsion (7 DOF) add-on has been activated)

The deformations refer to the local member axes.

Internal Forces

You can display the internal forces of members graphically by using the "Members" → "Internal Forces" navigator category (see the image Results of Time History Analysis ). In the "Internal Forces" tab of the table, the internal forces of members are displayed numerically. The results are as follows:

• Forces N, V_y, and V_z
• Moments M_T, M_y, and M_z
• Bimoment M_ω (provided that the Warping Torsion (7 DOF) add-on has been activated)
• Torsional moments M_T,pri and M_T,sec (provided that the Warping Torsion (7 DOF) add-on has been activated)

Strains

Member strains represent local deformations in the form of axial strains and shearing. In the "Members" → "Strains" navigator category and in the "Strains" tab of the table, the following results are available:

• Axial strains and shear strains ε_x, γ_xy, and γ_xz
• Torsional and bending strains κ_x, κ_y, and κ_z

Contact Forces

For members with a member support, you can display the "Contact Forces" in the navigator and in the table. Specifically, these are:

• Contact forces p_x, p_p, and p_z
• Moment m_x

Internal Forces by Section

The "Internal Forces by Section" tab of the table lists the extreme values of the internal forces that are available for each cross-section.
