The table result category Results by Node lists the results of the spectral analysis that are available at nodes. The results in the individual tabs are sorted by node numbers.
Global Deformations

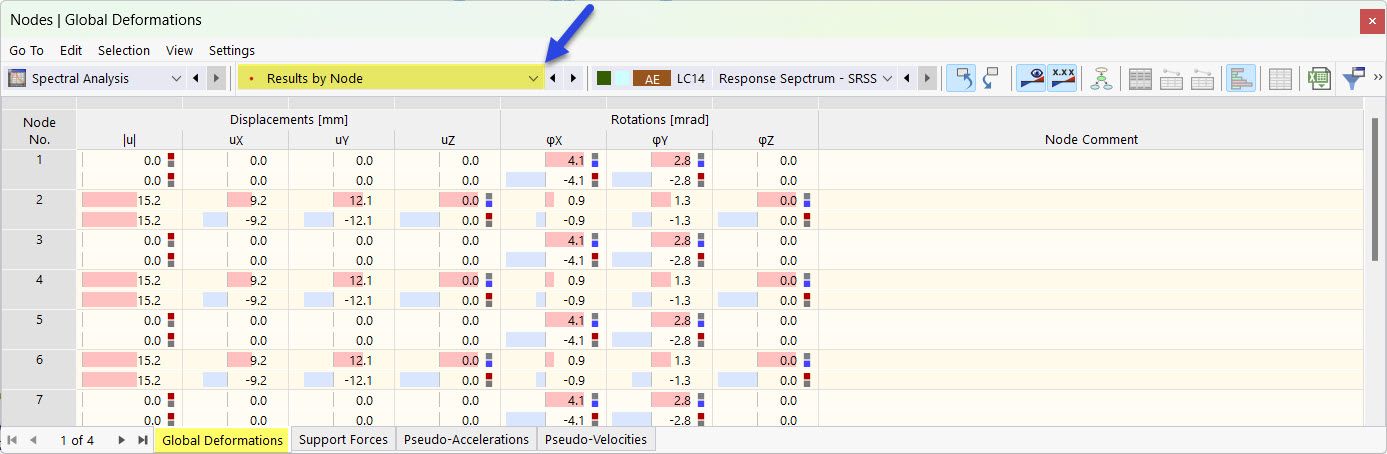

You can display the nodal deformations graphically using the "Global Deformations" navigator category (see the image Spectral Analysis Results ). In the "Global Deformations" tab of the table, the deformations of the nodes are displayed numerically.
The absolute total displacement |u|, the displacements uX, uY, and uZ, as well as the rotations φX, φY, and φZ are displayed. At the end of the table, you can find the maximum and minimum values of the individual deformation components.
Support Forces

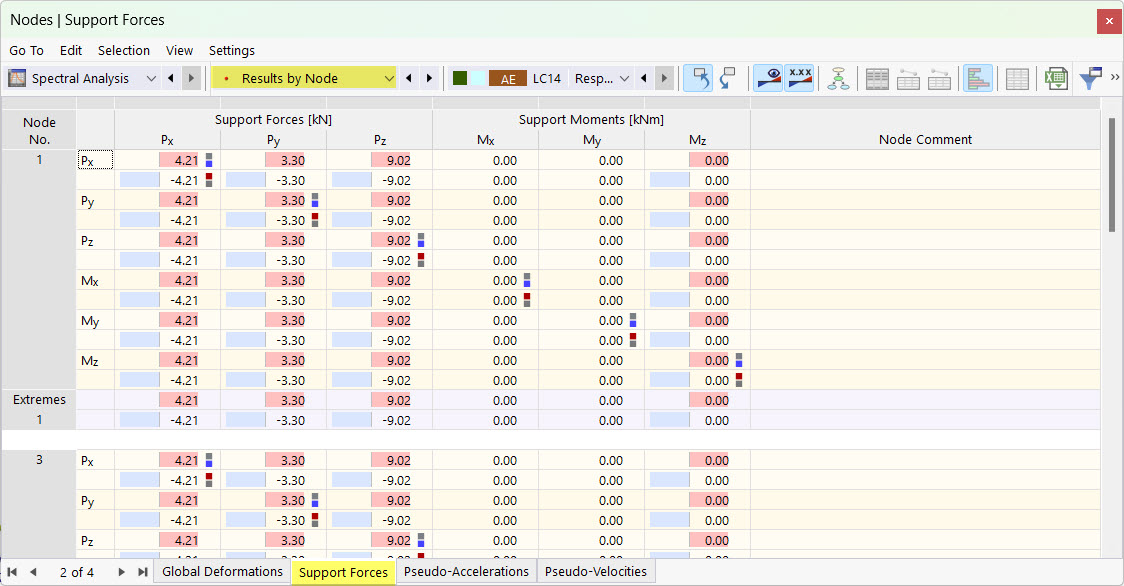

The "Support Forces" tab lists the forces and moments that are introduced into each nodal support.
Pseudo-Accelerations

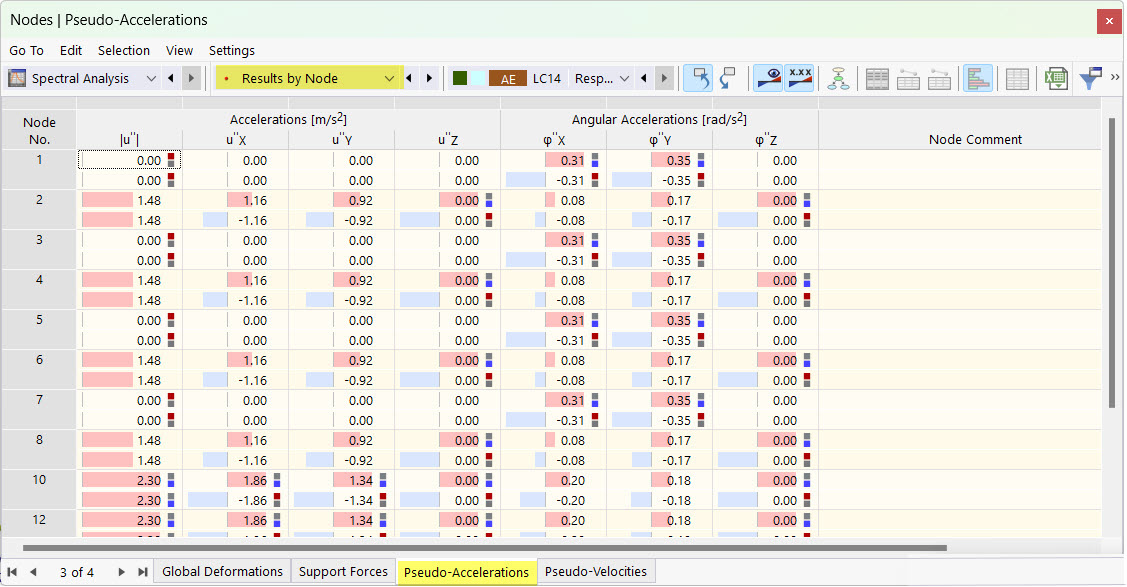

In the "Pseudo-Accelerations" tab, you can see the accelerations that apply to the individual nodes. The absolute total displacement |u''|, the accelerations u'X, u'Y, and u'Z, as well as the angular accelerations φ'X, φ'Y, and φ'Z, are displayed.
The pseudo-accelerations are only shown in tabular form; they cannot be displayed graphically.
Pseudo-Velocities

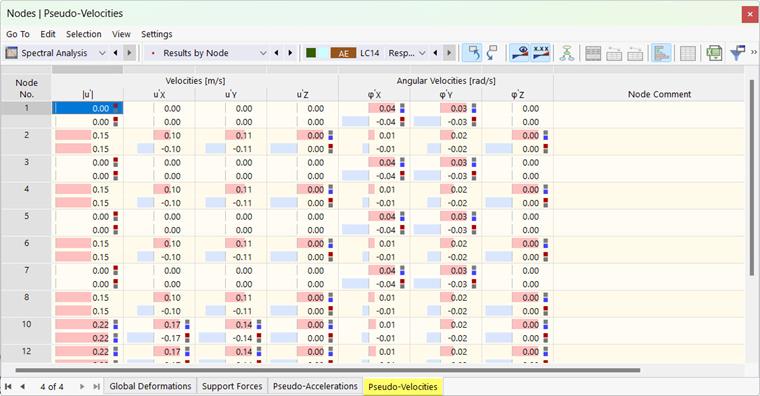

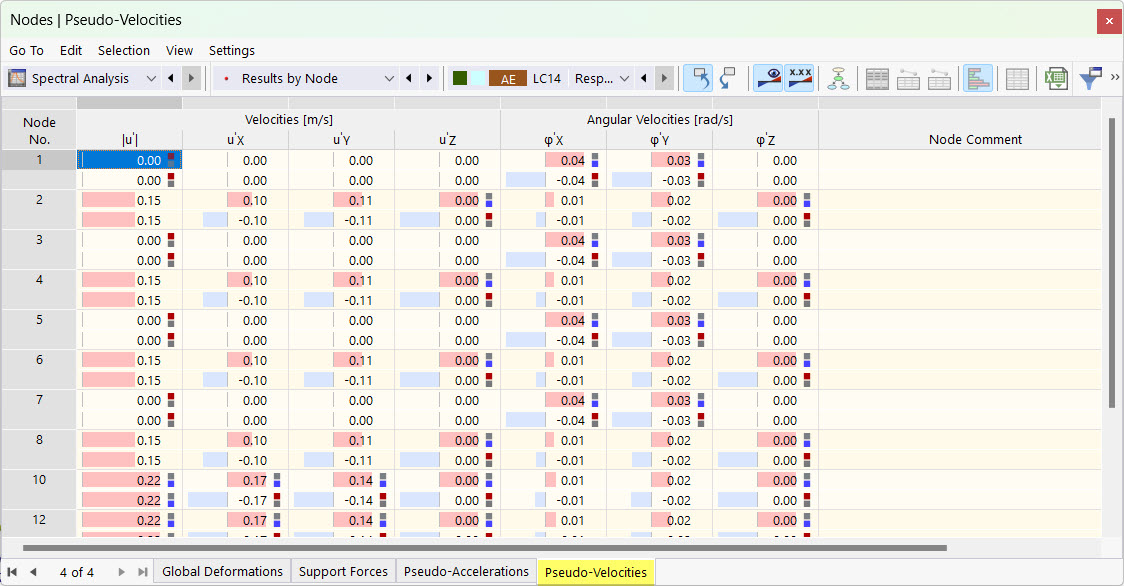

The "Pseudo-Velocities" tab lists the velocities that are present at each node. The absolute total velocity |u'|, the velocities u'X, u'Y, and u'Z, as well as the angular velocities φ'X, φ'Y, and φ'Z, are displayed.
These results are also only available in tabular form.
