Calculation

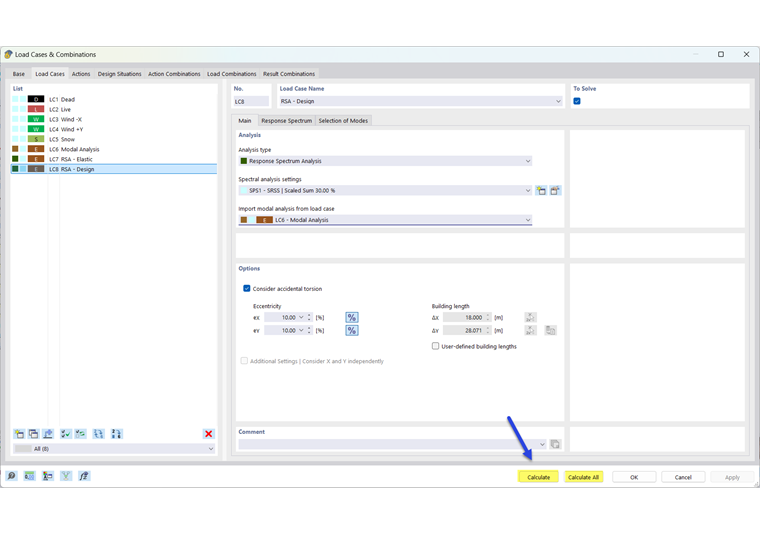

Once you have made all the entries in the Load Cases and Combinations dialog box, you can start the calculation directly. The selected load case is calculated using the Calculate button; the Calculate All button starts the calculation of all load cases and combinations.

You can also start the calculation of the current load case by clicking the Show Results button in the toolbar (see the image Calculate Load Case ). Click the Calculate All button to start the calculation of all load cases and combinations (see the chapter Starting Calculation of the RFEM manual).

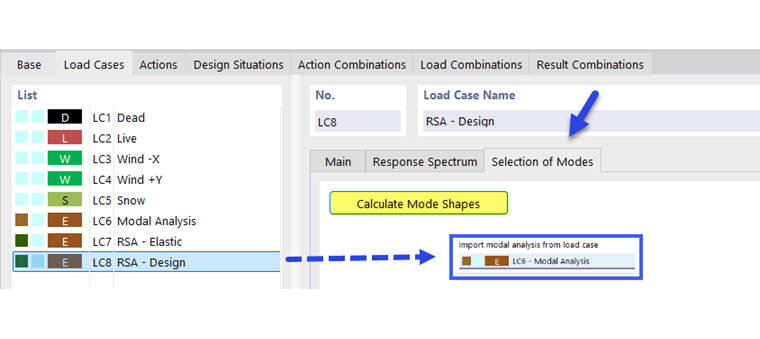

If no results of the modal analysis load case are available yet, you can use the  Calculate Mode Shapes button in the Selection of Shapes tab to determine the mode shapes without leaving the "Load Cases and Combinations" dialog box.
