Flow Field Quantities

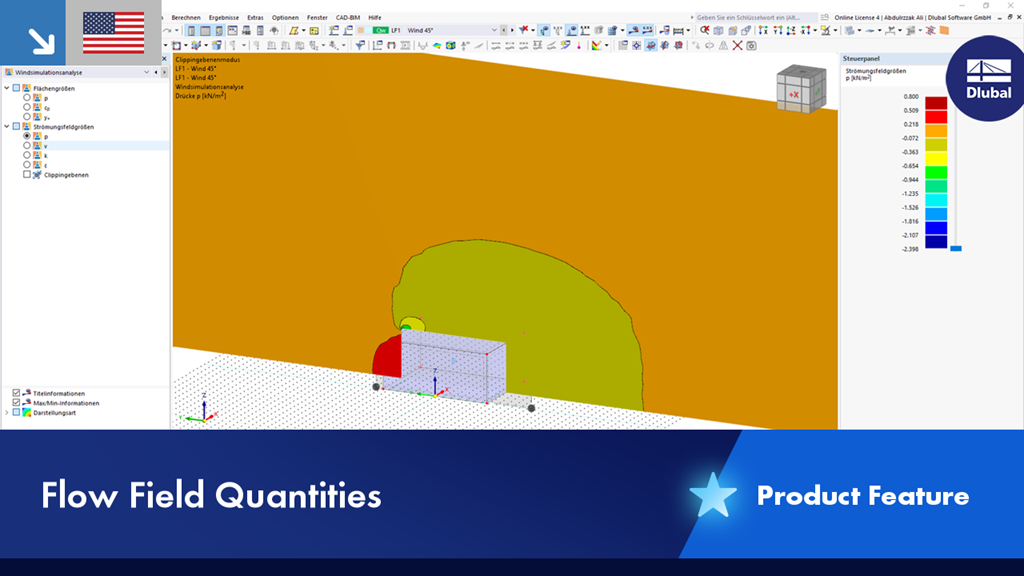

In RFEM and RSTAB, you can visualize the flow field quantities of pressure, velocity, turbulence kinetic energy, and turbulence dissipation rate for the wind simulation.

The clipping planes are aligned with the respective wind direction.
