005504
Dipl.-Ing. Juliane Stopper-Akdag
2025-01-20
Illustration of a method for performing stability analysis according to DIN EN 1992-1-1 in RFEM 6
  • Description
  • Reviews (0)

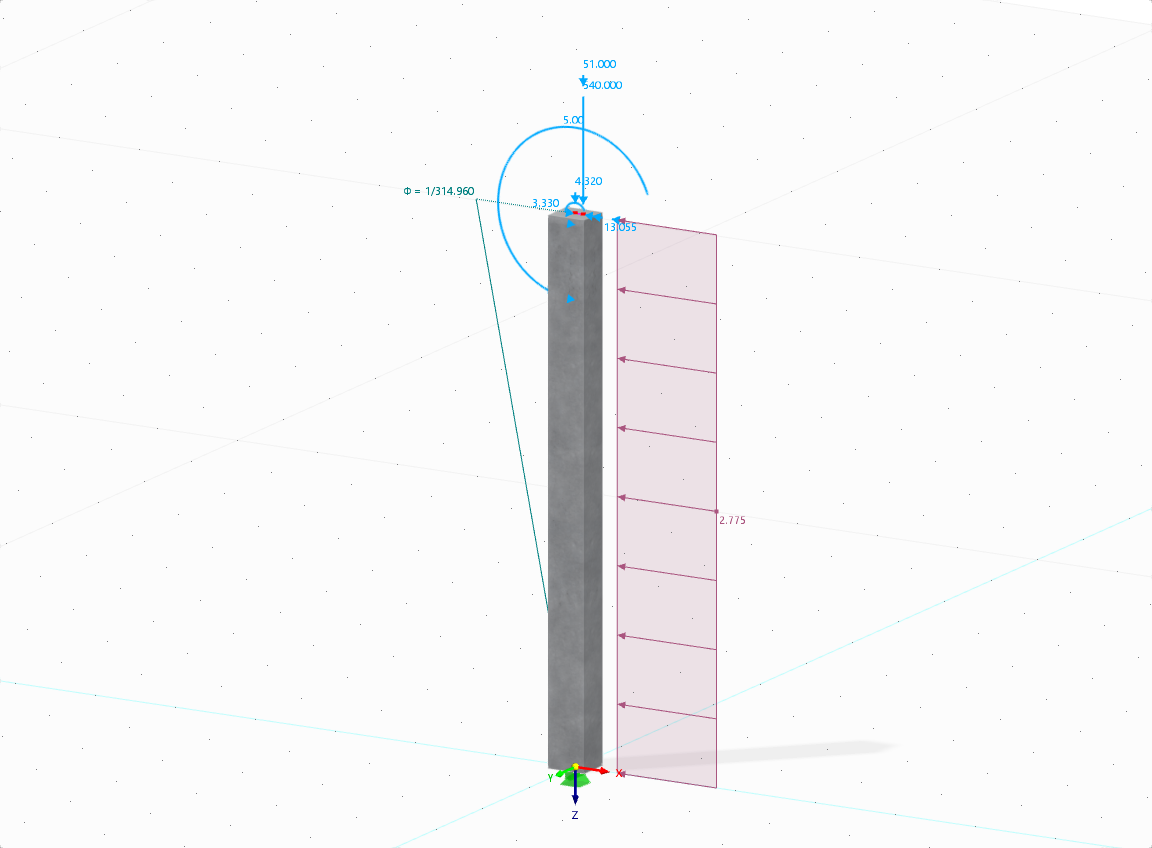

Model 5504 consists of a slender reinforced concrete column, which is subjected to a stability analysis according to the General Method of DIN EN 1992-1-1 (EC2). The stability analysis is performed, considering nonlinear effects to ensure the load-bearing capacity of the compression member in the ultimate limit state (ULS). This analysis is crucial for the design of slender columns in construction practice.

Model Used in
Overall
0 out of 5 stars
This page has 0 user ratings.
5 star
4 star
3 star
2 star
1 star
(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

Stability Design Check of Slender Reinforced Concrete Column According to EC 2

Number of Nodes 3
Number of Lines 2
Number of Members 2
Number of Surfaces 0
Number of Solids 0
Number of Load Cases 4
Number of Load Combinations 2
Number of Result Combinations 0
Total Weight 2.790 t
Dimensions (Metric) 0.100 x 6.200 x 0.000 m
Dimensions (Imperial) 0.33 x 20.34 x 0 feet

You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.

Report This 3D Model
Events
Videos
Models to Download
Knowledge Base Articles
Load Case Calculation Parameters
The current state of the development of finite element analysis software and computer technology allows for the calculation of more complex structure. More and more frequently, FE calculations are performed on the entire model. In this context, certain practical construction problems may appear. One of these problems is the consideration of a construction process in the model.
Illustration of a method for performing stability analysis according to DIN EN 1992-1-1 in RFEM 6
For reinforced concrete components and structures whose structural behavior is significantly influenced by the second-order effects, Eurocode 2 provides the general method based on a nonlinear determination of internal forces according to the second-order analysis (5.8.6), as well as an approximation method based on the nominal curvature (5.8.8).

The aim of this technical article is to perform a design according to the general design method of Eurocode 2, using the example of a slender reinforced concrete column.
Modell eines Stahlbetonbalkens, der durch Kriechen und Schwinden beeinflusst wird
This technical article addresses the direct deformation analysis of reinforced concrete beams considering the long-term effects of creep and shrinkage. The direct calculation according to Eurocode 2 (EN 1992-1-1, Section 7.4.3) is explained using a single-span beam. Particular emphasis is placed on tension stiffening, behavior in the cracked state based on the distribution factor (damage parameter), and consideration of shrinkage and creep behavior.
Illustration of equivalent lateral force method for seismic analysis in structural engineering
This article provides a comprehensive overview of essential seismic analysis methods, explaining their principles and applications, as well as the scenarios in which they are most effective
