In May 2022, the new Sky Bridge was opened in Dolní Morava in the Czech Republic, the longest pedestrian bridge in the world with a length of 721 m. The structural analysis and design was performed by TAROS NOVA a.s. using RFEM 5. The bridge impresses with its suspension and cable structure. The project represents a modern engineering approach in the field of innovative construction.
Model Used in
Overall
This page has 0 user ratings.
| 5 star | ||
| 4 star | ||
| 3 star | ||
| 2 star | ||
| 1 star |

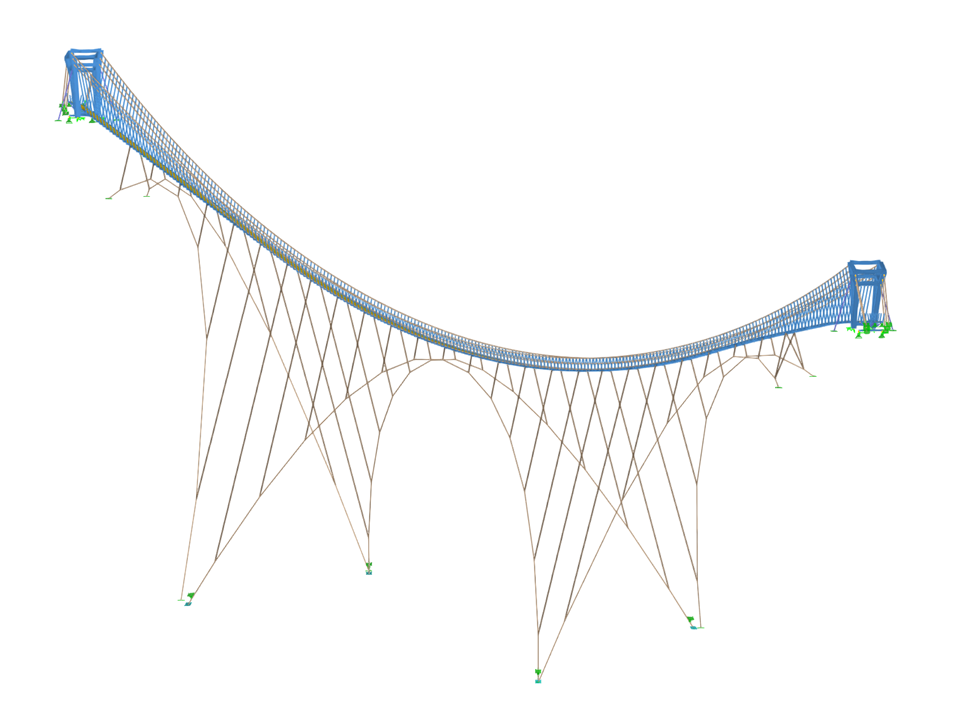

Pedestrian Bridge Sky Bridge in Dolní Morava, Czech Republic
No Download Possible
Customer Project / View Only
| Number of Nodes | 9818 |
| Number of Lines | 11184 |
| Number of Members | 10273 |
| Number of Surfaces | 650 |
| Number of Load Cases | 21 |
| Number of Load Combinations | 220 |
| Number of Result Combinations | 4 |
| Total Weight | 234,278 t |
| Dimensions (Metric) | 721.867 x 32.940 x 89.085 m |
| Dimensions (Imperial) | 2368.33 x 108.07 x 292.27 feet |
| Program Version | 5.24.01 |
