User-defined visibilities facilitate program handling. Once created, any model groups can be quickly hidden or shown. This can facilitate, among other things, the result analysis in larger 3D structures and the creation of the protocol as well. When changing the geometry, the existing visibilities may have to be updated.
This model was used to explain how the existing visibilities can be extended.

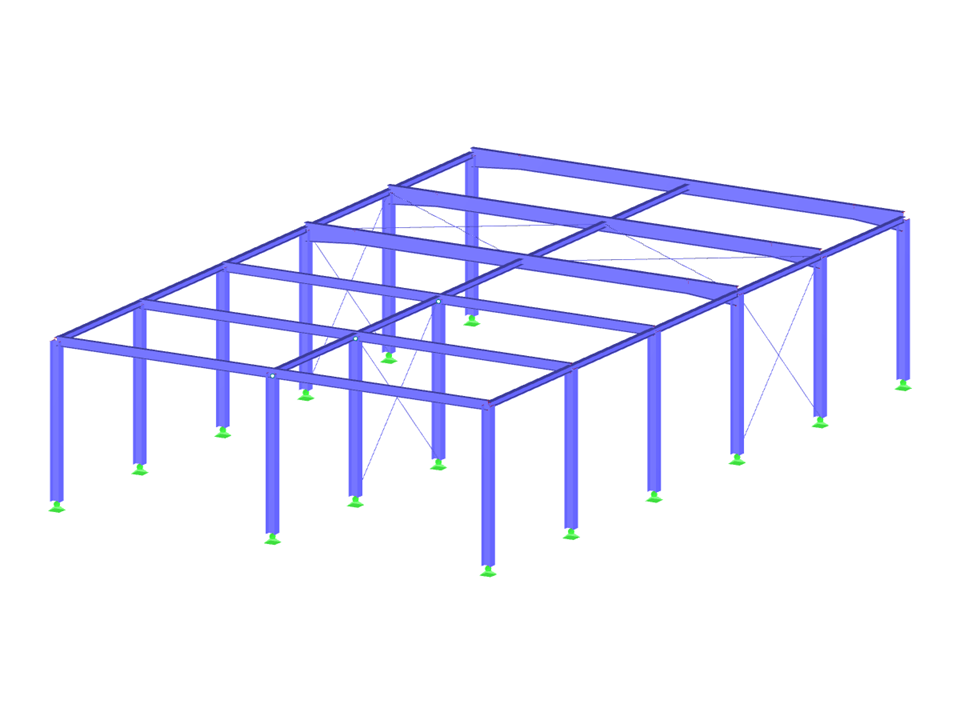

3D Hall
| Number of Nodes | 41 |
| Number of Lines | 60 |
| Number of Members | 60 |
| Number of Load Cases | 8 |
| Number of Load Combinations | 32 |
| Number of Result Combinations | 2 |
| Total Weight | 18.258 tons |
| Dimensions (Metric) | 15.313 x 25.313 x 5.156 m |
| Dimensions (Imperial) | 50.24 x 83.05 x 16.92 feet |
| Program Version | 5.25.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
