This model was used to explain the quick generation of bracing in RFEM 5 and RSTAB 8.
Model Used in

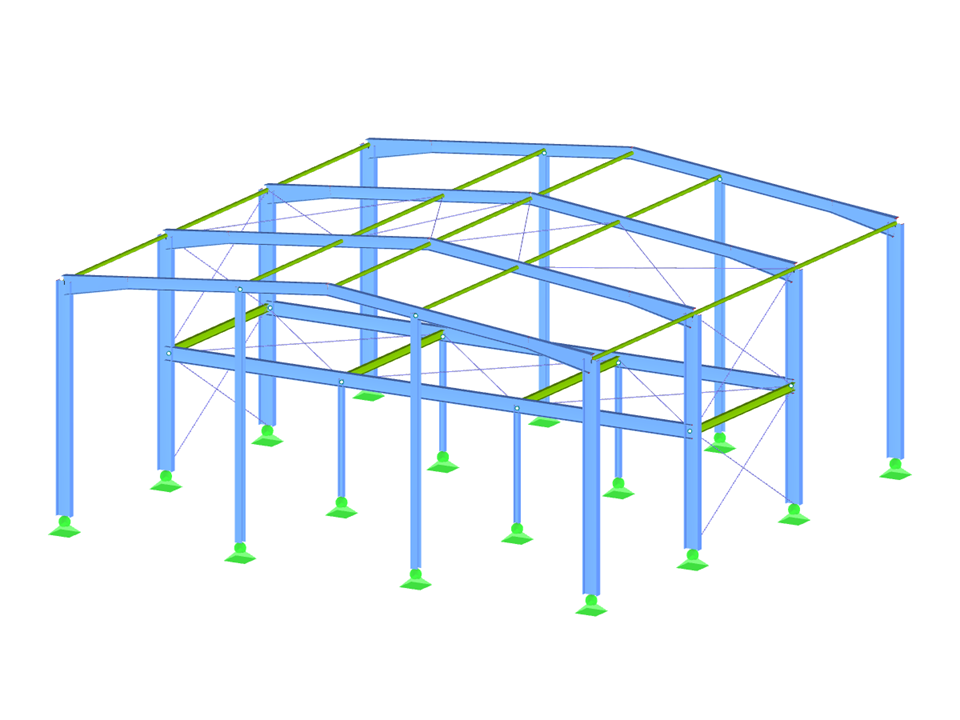

Steel Hall with Generated Bracing
| Number of Nodes | 56 |
| Number of Lines | 95 |
| Number of Members | 95 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 16 |
| Number of Result Combinations | 2 |
| Total Weight | 10.396 tons |
| Dimensions (Metric) | 15.000 x 6.788 x 15.000 m |
| Dimensions (Imperial) | 49.21 x 22.27 x 49.21 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
