The load generator in RFEM and RSTAB provides a powerful tool for determining wind loads. This model was used to show how the direction in which the wind hits the structure can be defined directly via the input window.
Model Used in

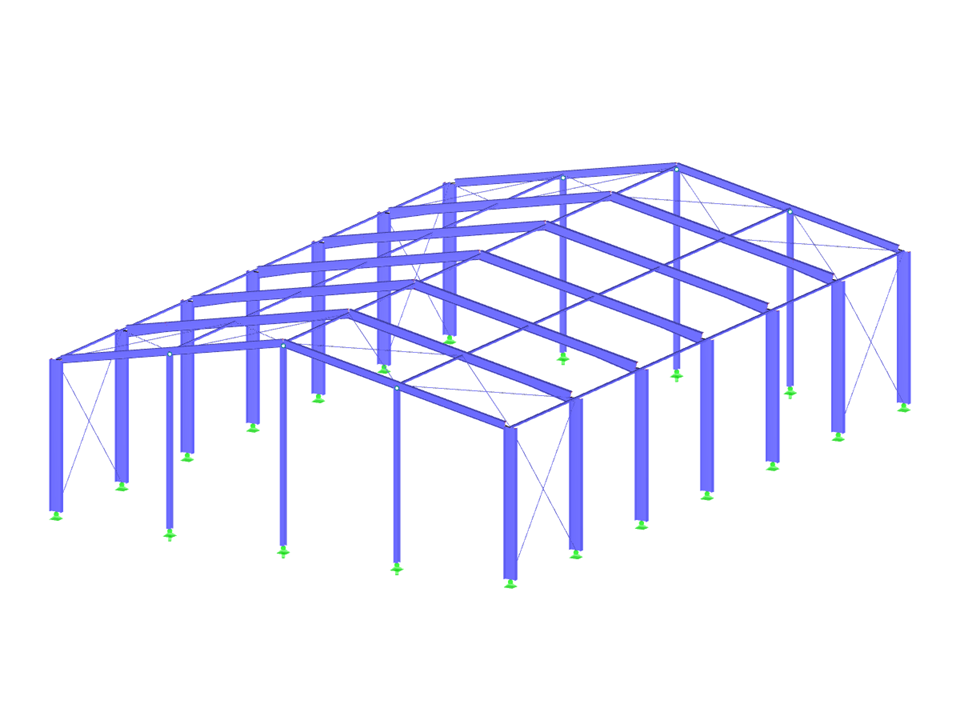

Steel Hall
| Number of Nodes | 65 |
| Number of Lines | 112 |
| Number of Members | 112 |
| Total Weight | 19.421 tons |
| Dimensions (Metric) | 20.024 x 30.024 x 8.012 m |
| Dimensions (Imperial) | 65.7 x 98.5 x 26.29 feet |
| Program Version | 5.25.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
