Orthotropy Direction for Layers

Why can I not define a rotation when defining layers?

Answer:

If no angle can be defined in the "Rotation" column, an isotropic material model is selected for the material where stiffnesses are identical in all directions and it is not necessary to define an angle.

FAQ | 005327
EN-US | Flag FAQ
FAQ 005327 | Why cannot I define a rotation when defining layers?
FAQ 005327 | Why cannot I define a rotation when defining layers?

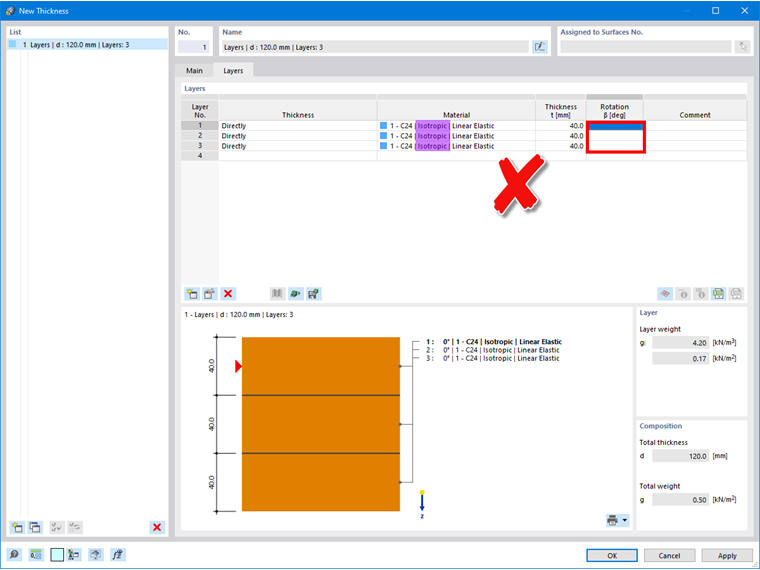

Entering Rotation for Layers with Isotropic Material Model

If you use materials with anisotropic behavior (for example, timber), it is necessary to ensure that the "Orthotropic | Linear Elastic (Surfaces)" material model is selected.

FAQ 005327 | Why cannot I define a rotation when defining layers?

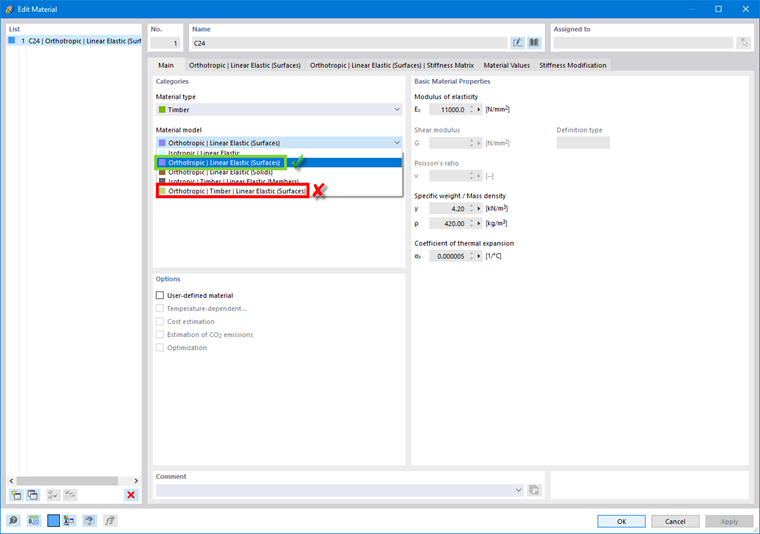

Selecting Material Model

Note: The "Orthotropic | Timber | Linear Elastic (Surfaces)" material model cannot be currently used in combination with the "Layers" thickness type.

After switching to the orthotropic material model, the individual layers can be rotated accordingly.

FAQ 005327 | Why cannot I define a rotation when defining layers?

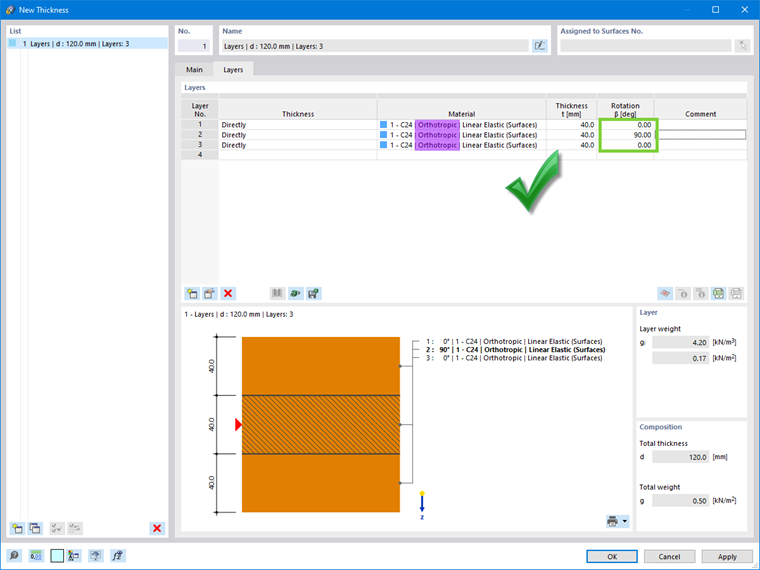

Entering Rotation for Layers with Orthotropic Material Model
