The German company Berliner Seilfabrik has designed and produced playground equipment for children since the 1970s. Climbing the spatial rope net structures helps children to develop and improve their psychomotor skills and three-dimensional perception abilities. The items of play equipment have names like Globe, UFO, and Twist & Shout.
Heinz Bornemann, a customer of Dlubal Software, provides structural analysis and design for a wide range of this playground equipment; for example, the "Globe" and various types of "Tetragode". RSTAB structural frame analysis software is used for the calculation of spatial supporting structures.
Berliner Seilfabrik GmbH & Co., Berlin, Germany
www.berliner-seilfabrik.com

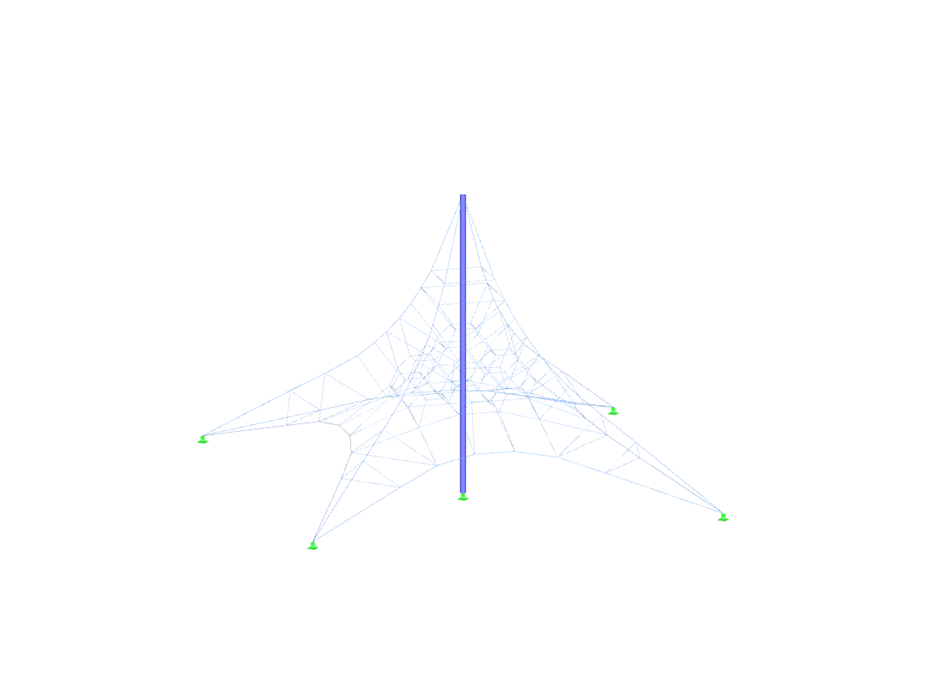

3D Model and Photo of "Globe" Rope Play Equipment (© Screenshot: Dipl.-Des. Heinz Bornemann, Bad Bentheim/© Picture: Berliner Seilfabrik)
Heinz Bornemann, a customer of Dlubal Software, provides structural analysis and design for a wide range of this playground equipment; for example, the "Globe" and various types of "Tetragode". RSTAB structural frame analysis software is used for the calculation of spatial supporting structures.
Berliner Seilfabrik GmbH & Co., Berlin, Germany
www.berliner-seilfabrik.com

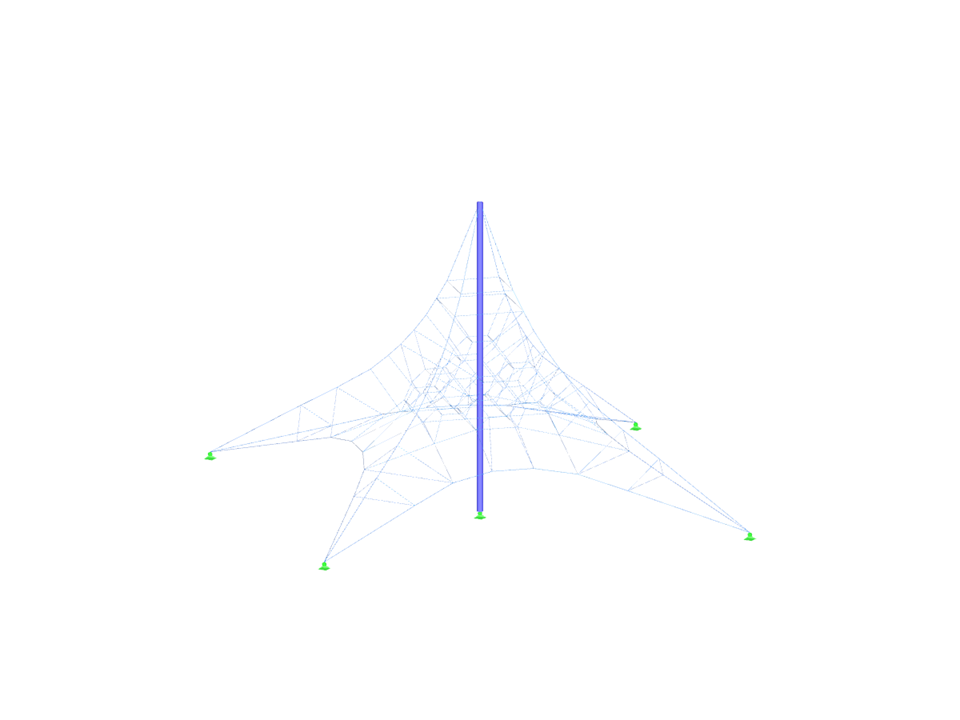

3D Model and Photo of "Globe" Rope Play Equipment (© Screenshot: Dipl.-Des. Heinz Bornemann, Bad Bentheim/© Picture: Berliner Seilfabrik)
Rope Playground Equipment, Germany
No Download Possible
Customer Project / View Only
Number of Nodes | 148 |
Number of Members | 307 |
Number of Load Cases | 9 |
Number of Load Combinations | 4 |
Number of Result Combinations | 2 |
Total Weight | 0.144 tons |
Dimensions (Metric) | 13.040 x 13.040 x 6.691 m |
Dimensions (Imperial) | 42.78 x 42.78 x 21.95 feet |
Program Version | 8.06.11 |
