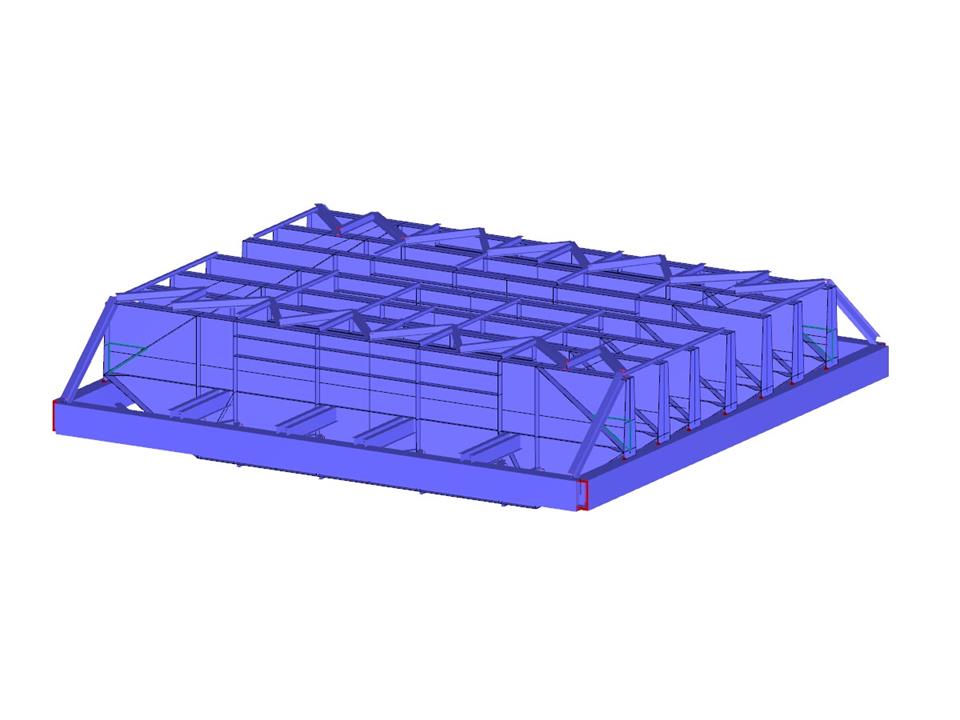

The model shows the boiler roof with its supporting scaffolding, which is used to support the combustion chamber and loads of approx. 46,000 tons in the coal-fired power plant in Neyveli, Tamil Nadu, India. The scaffolding measures 30.5 m x 30.5 m x 124.0 m and is a central bracing element. The Dlubal customer Voss & Kamb und Partner GmbH, Kaiserslautern was responsible for the structural analysis of the structure and the joints. The 3D model in RSTAB also includes a deformation analysis (© Voss & Kamb und Partner GmbH). It represents sophisticated engineering services for steel structures as well as in industrial and process manufacturing plants.
5 star | ||
4 star | ||
3 star | ||
2 star | ||
1 star |
Boiler Supporting Structure in Coal-Fired Power Plant
Number of Nodes | 1857 |
Number of Lines | 2709 |
Number of Members | 780 |
Number of Surfaces | 555 |
Number of Load Cases | 19 |
Number of Result Combinations | 44 |
Total Weight | 1315,136 t |
Dimensions (Metric) | 31.900 x 33.100 x 7.850 m |
Dimensions (Imperial) | 104.66 x 108.6 x 25.75 feet |
Program Version | 5.05.00 |
