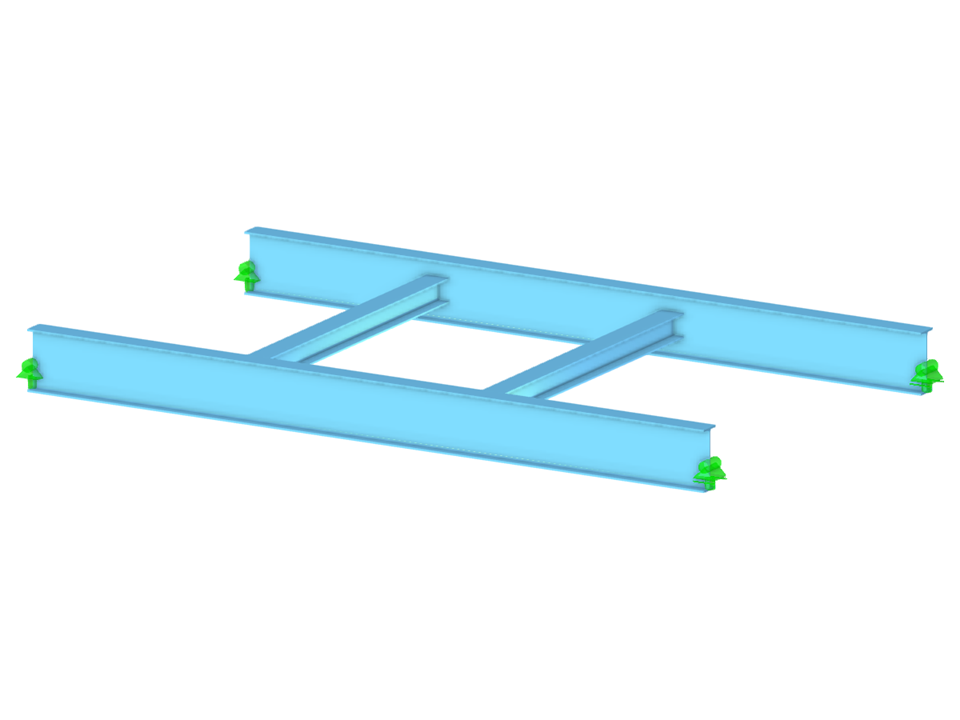

Member Warping Torsion
Number of Nodes | 8 |
Number of Lines | 4 |
Number of Members | 4 |
Number of Surfaces | 0 |
Number of Solids | 0 |
Number of Load Cases | 2 |
Number of Load Combinations | 6 |
Number of Result Combinations | 0 |
Total Weight | 2.429 tons |
Dimensions (Metric) | 7.200 x 0.000 x 4.000 m |
Dimensions (Imperial) | 23.62 x 0 x 13.12 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
![Activating Add-ons in Base Data](/en/webimage/025674/3163004/1._Activation_of_the_Add-ons_in_the_Base_Data.png?mw=512&hash=48a1189d3e74caf5d8c4c0bffe910df0ec953a99)
![KB 001883 | Plate Girder Design According to AISC 360-22 in RFEM 6](/en/webimage/051561/3980997/im1.png?mw=512&hash=b8237709c4f30213fac51d86d32a42bddde72f03)
![Steel Connection Rigidity and Its Influence on Structural Design](/en/webimage/051432/3972404/Rigidity-caseA.png?mw=512&hash=3be64e68ab2956fd2b92f0afa1559b3a8c72b468)
![KB 001875 | AISC 341-22 Moment Frame Member Design in RFEM 6](/en/webimage/047794/3736755/im01.jpg?mw=512&hash=33697d419a0e8a96b738e8e2e97fae057743a108)
- Consideration of 7 local deformation directions (ux, uy, uz, φx, φy, φz, ω) or 8 internal forces (N, Vu, Vv, Mt,pri, Mt,sec, Mu, Mv, Mω) when calculating member elements
- Usable in combination with a structural analysis according to linear static, second-order, and large deformation analysis (imperfections can also be taken into account)
- In combination with the Stability Analysis add-on, allows you to determine critical load factors and mode shapes of stability problems such as torsional buckling and lateral-torsional buckling
- Consideration of end plates and transverse stiffeners as warping springs when calculating I-sections with automatic determination and graphical display of the warping spring stiffness
- Graphical display of the cross-section warping of members in the deformation
- Full integration with RFEM and RSTAB
![Mode Shape of Entire Model for Lateral-Torsional Buckling](/en/webimage/022945/3135520/22945_ENUS.png?mw=512&hash=836ef14d960c79b529705e0511dff3382568c47c)
You can perform the calculation of the warping torsion on the entire system. Thus, you consider the additional 7th degree of freedom in the member calculation. The stiffnesses of the connected structural elements are automatically taken into account. It means, you don't need to define equivalent spring stiffnesses or support conditions for a detached system.
You can then use the internal forces from the calculation with warping torsion in the add-ons for the design. Consider the warping bimoment and the secondary torsional moment, depending on the material and the selected standard. A typical application is the stability analysis according to the second-order theory with imperfections in steel structures.
Did you know that The application is not limited to thin-walled steel cross-sections. Thus, it is possible for you, for example, to perform the calculation of the ideal overturning moment of beams with solid timber cross-sections.
![Activating Add-on in RFEM 6](/en/webimage/031558/3314125/Screenshot_05-05-2022_16.30.58.png?mw=512&hash=27674fdf0877c6d6f94c484a7908805ecd6c8f12)
- You can activate or deactivate the use of torsional warping in the Add-ons tab of the model's Base Data.
- After activating the add-on, the user interface in RFEM is extended by some new entries in the navigator, tables, and dialog boxes.
![Add-on "Steel Joints for RFEM 6" | Component Library](/en/webimage/043097/3898884/steel_joints_components.png?mw=512&hash=e4f835906155863fc7019d5043b22e553dc766f9)
- Numerous component types, such as base and end plates, web angles, fin plates, gusset plates, stiffeners, tapers, or ribs for easy input of typical connection situations
- Universally applicable basic components (such as plates, welds, bolts, auxiliary planes) for modeling complex connection situations
- Graphical display of the connection geometry with dynamic updating during the input
- Wide range of cross-section shapes: I-sections, U-sections, angles, T-sections, hollow sections, built-up cross-sections and thin-walled sections
- Library in the Dlubal Center with a large number of program-side template connections, including user-defined templates
- Automatic adaptation of the connection geometry based on the relative arrangement of the components to each other – even in case of subsequent editing of the structural components
