Model Mesh

With the "Edit Model Mesh" function, you can edit the elements of the model mesh.

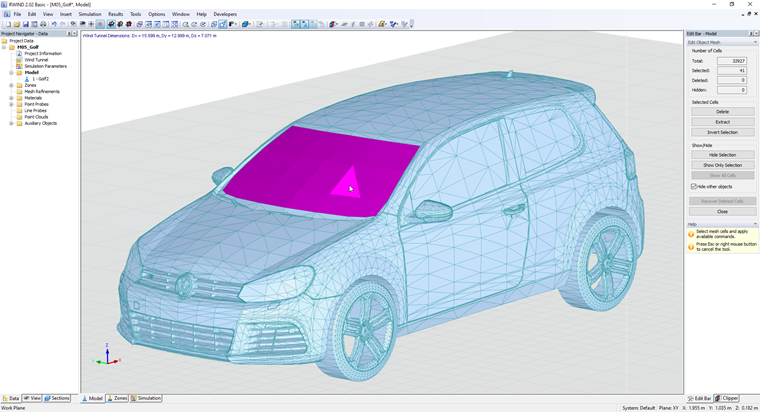

Editing Model Mesh
Editing Model Mesh

The individual elements are selected with the mouse. In the "Selected Cells" section, there are the options for deletion, extraction, and other functions.

Tip

This tool is useful for modifying the geometry of the model before the calculation or for selecting a specific part of the model for calculation.
