In the "Navigator - Results", specify the design results of the reinforcement sections that should be displayed graphically on the punching nodes. You can select specific results for the required reinforcement (longitudinal reinforcement as,req, punching shear reinforcement Asw,req), as well as for the provided longitudinal reinforcement as,prov.
The cross-sectional area of the selected reinforcement type is displayed for each punching node.

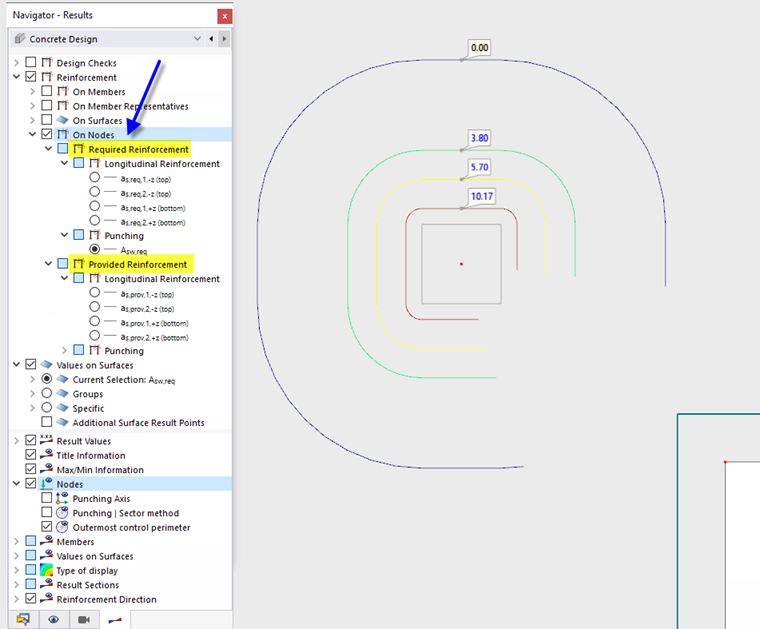

As shown in the image above, you can read off the reinforcement in the perimeters using the isoline display. To do this, activate the check box of the "Values on Surfaces" category. You can show and hide the outermost control perimeter using the corresponding option in the lower navigator area.
Tip

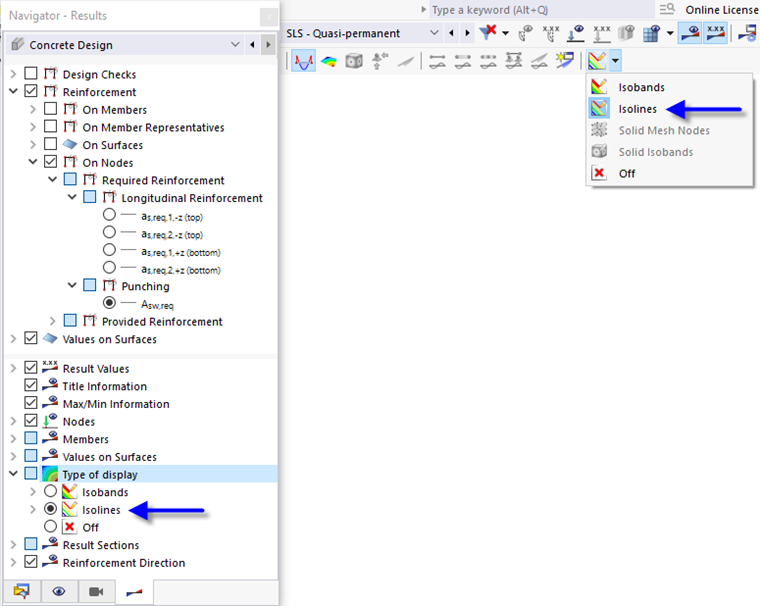

Use the "Type of display" category in the lower area of the navigator or the list button
in the toolbar to switch between the display of isobands and isolines.
