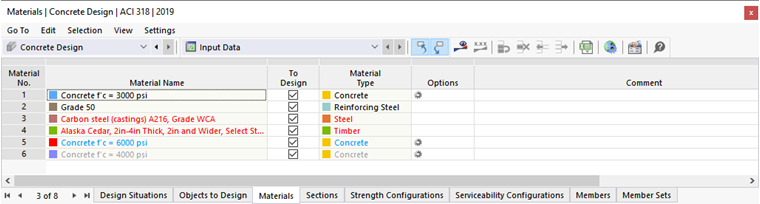

The concrete design is linked to the materials of the Concrete and Reinforcing Steel category, which have to be created in the model. The "Materials" table of the "Concrete Design" category lists all materials defined for the model.
Valid Materials
The font color of the materials gives you the information about the utilization and validity of the material for the concrete design:
- Black = material suitable for design
- Red = material not suitable for design
- Blue = material not used in the model
- Gray = material not used for objects to design

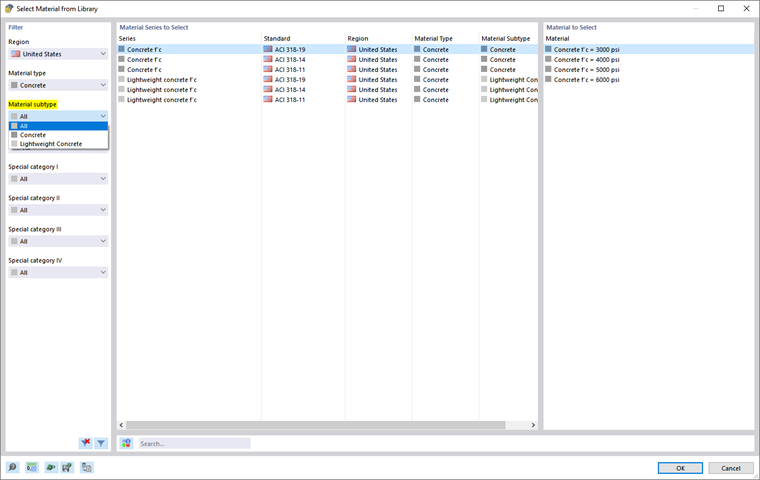

For concrete materials, there is a further distinction made between the "Concrete" and "Lightweight Concrete" subtypes. You can use this filter option in the material library of RFEM or RSTAB.
The objects with an invalid material assigned are not taken into account in the design – even if the "To Design" option is activated for this material. They are displayed in the table Zu bemessende Objekte automatisch als 'Nicht gültig / deaktiviert' ausgewiesen.
Removing Material from Design
For a valid material, you can exclude from design all objects with this material assigned by deactivating the "To Design" check box. These objects are classified as "Not Valid / Deactivated" in the Objects to Design table and are not analyzed during the design.
Options
The symbols in the "Options" column are used for different settings or modified values. They allow for a quick overview, for example, to identify the materials with adjusted properties.
By clicking the icon, you can open the editing dialog box of the material for the stored option.
|
Öffnet den Dialog 'Material bearbeiten' mit dem Register Beton-Einstellungen |
|
Öffnet den Dialog 'Material bearbeiten' mit dem Register Zeitabhängige Kennwerte des Betons |
