Tables for Concrete Design

After calculating the results, the Concrete Design table category contains further subcategories.

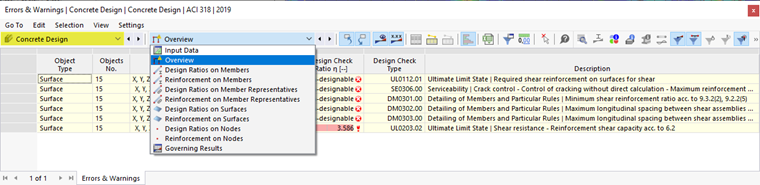

Concrete Design Result Tables

These categories with the respective worksheets are described in the following chapters:

• Overview
• Design Ratios on Members
• Reinforcement on Members
• Design Ratios on Member Representatives (if defined)
• Reinforcement on Member Representatives (if defined)
• Design Ratios on Surfaces
• Reinforcement on Surfaces
• Design Ratios on Nodes
• Reinforcement on Nodes
• Governing Results

Result Table Manager

You can use the button to open the "Result Table Manager" dialog box. There, you can control which tables and tabs are displayed. Furthermore, options for rows and columns are visible in the individual tables.

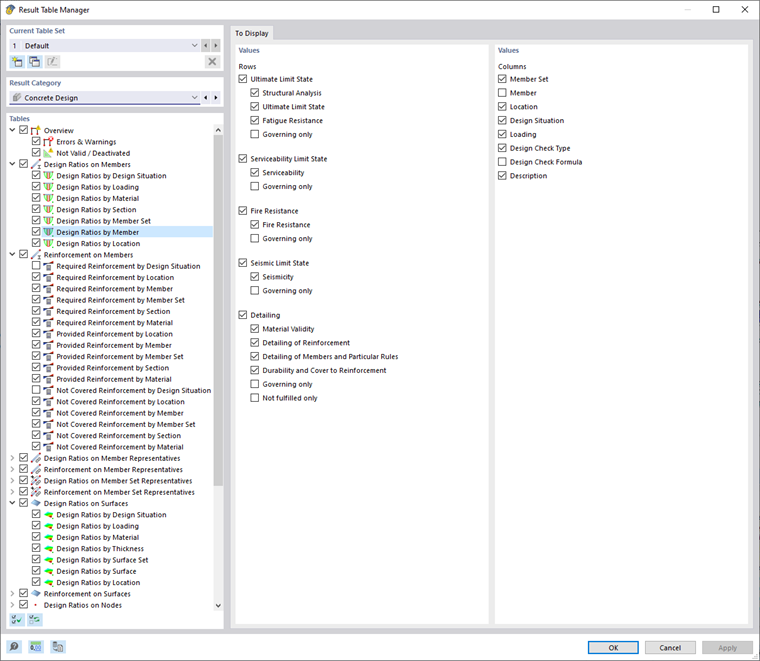

Result Table Manager for Concrete Design

Buttons in Table Toolbar

The toolbar of the result tables provides you with buttons that you can use to display and evaluate the results.

Button	Function
	Selects an object graphically to display its results in the table
	Opens the Design Checks Details dialog box
	Opens the Result Diagrams in Section dialog box
	Opens the "Information About Material" dialog box with material properties
	Opens the "Composition Properties" dialog box (in preparation for nonlinear calculation)
	Opens the "Information About Section" dialog box with cross-section properties
	Opens the Result Diagrams dialog box
	Shows or hides the ultimate limit state design results
	Shows or hides the serviceability limit state design results
	Shows or hides the fire resistance design results
	Shows or hides the seismic design results
	Shows or hides results for reinforcement rules and structural details
