Section Design for Cold-Formed Steel Members According to EN 1993-1-3

Would you like to perform cross-section design checks for cold-formed steel members according to EN 1993‑1‑3? No matter if you design the cold-formed sections from the cross-section library or the general cold-formed (non-perforated) sections from RSECTION – your structural analysis program helps you to determine the effective cross-section, taking into account the local buckling and instability. You can also perform a cross-section check according to EN 1993‑1‑3, 6.1.6. In this case, the internal forces from the calculation using Torsional Warping (7 DOF) are taken into account by means of the equivalent stress check

Go to Explanatory Video

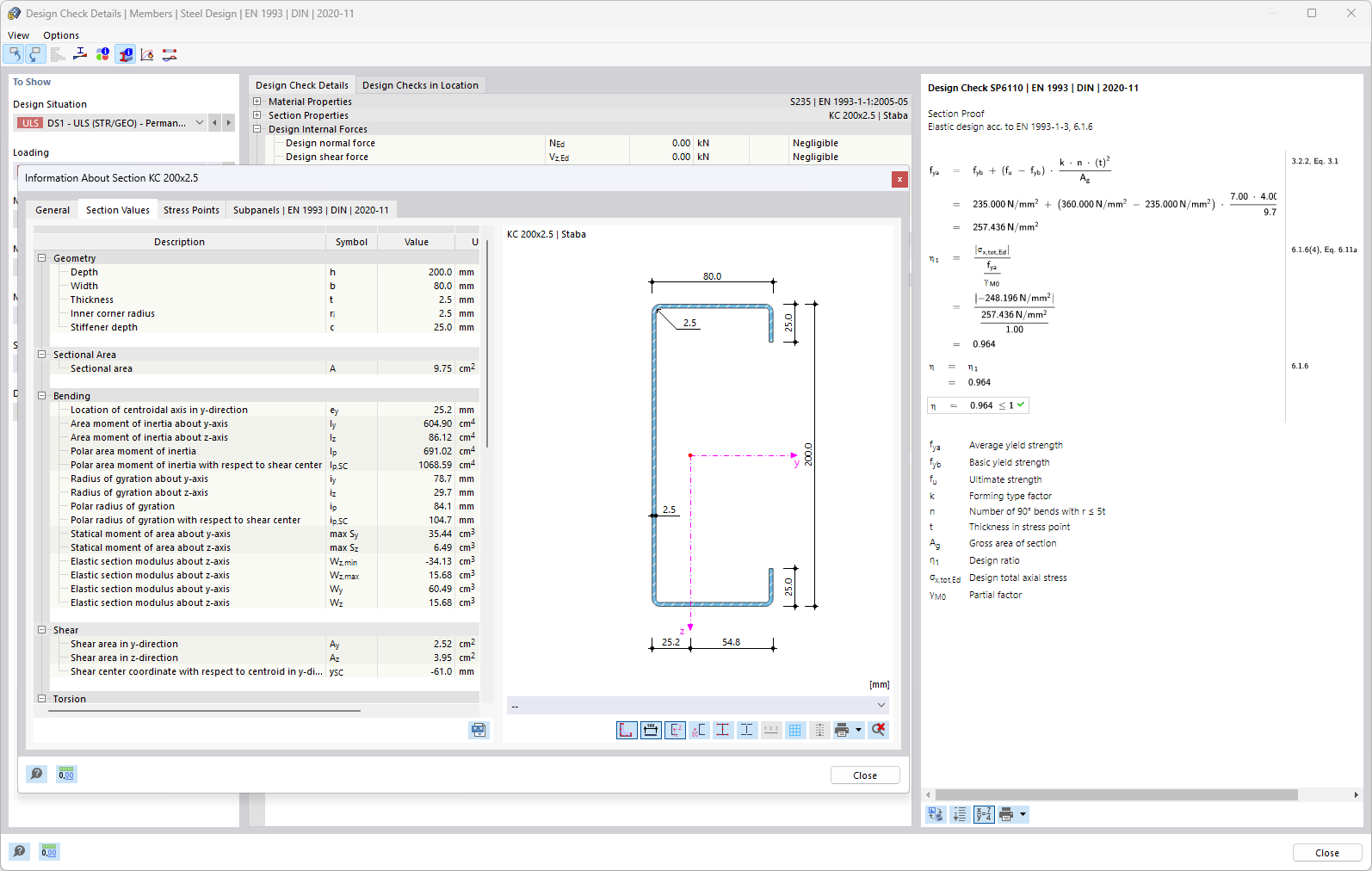

Feature 002552 | Cross-section checks for cold-formed steel members according to EN 1993-1-3 considering local buckling
Cross-Section Design Checks of Cold-Formed Steel Members According to EN 1993-1-3
