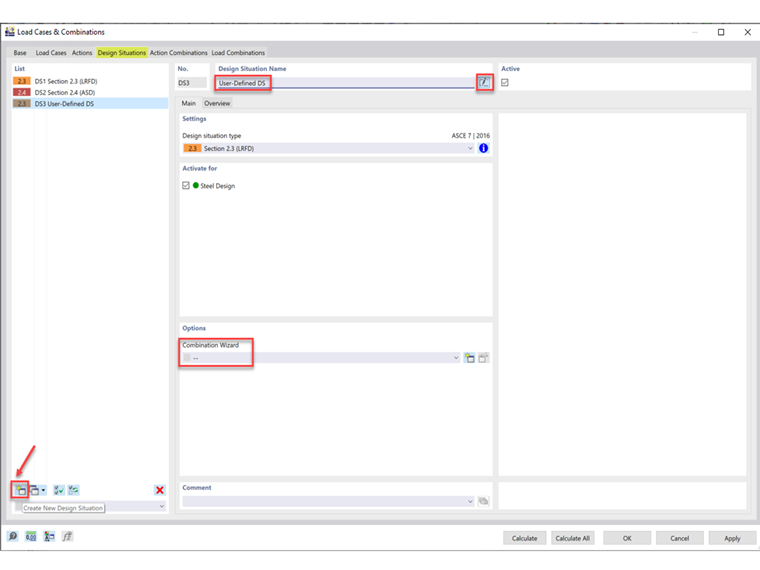

- Select Create New Design Situation and edit the design situation name. Clear the Combination Wizard option by selecting “- -” in the drop-down menu (Image 01).

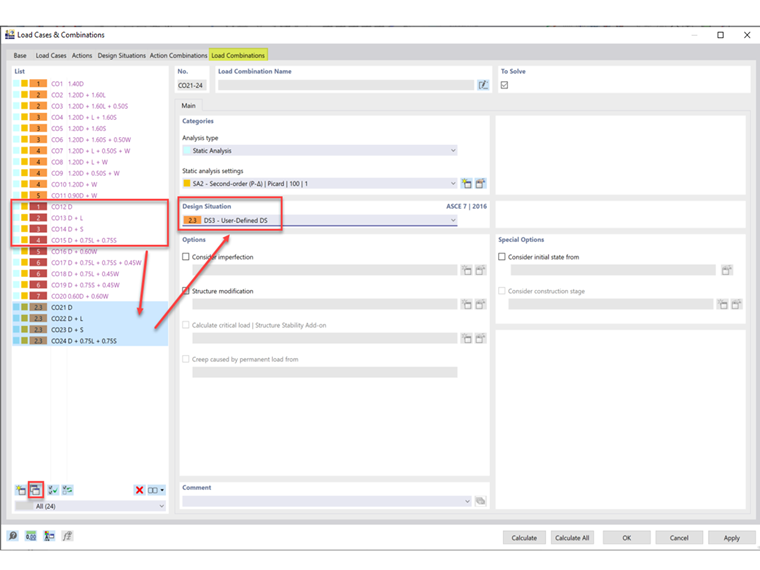

- In the Load Combinations tab, copy the selected load combination(s) and assign the newly created user-defined design situation (Image 02).

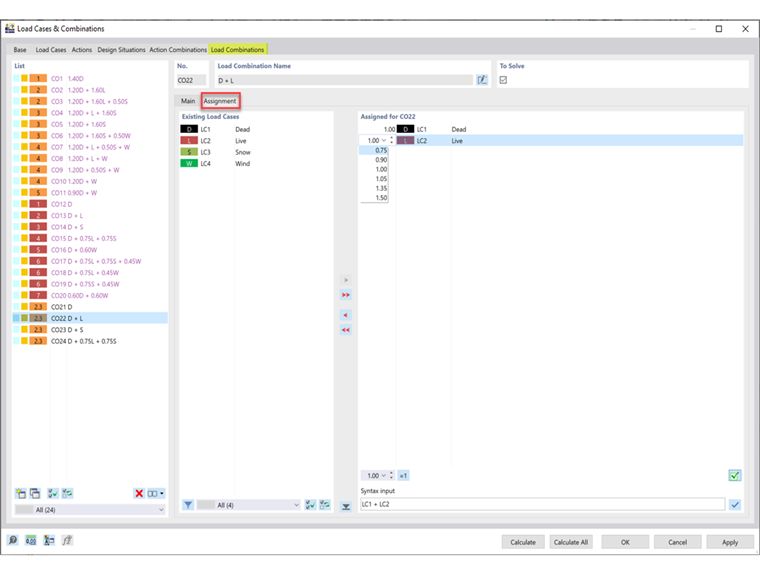

- In the Assignment tab, the load cases and factors may be adjusted for the assigned CO (Image 03).
User-Defined Design Situation
How do I create a user-defined Design Situation with my own chosen load combinations?
