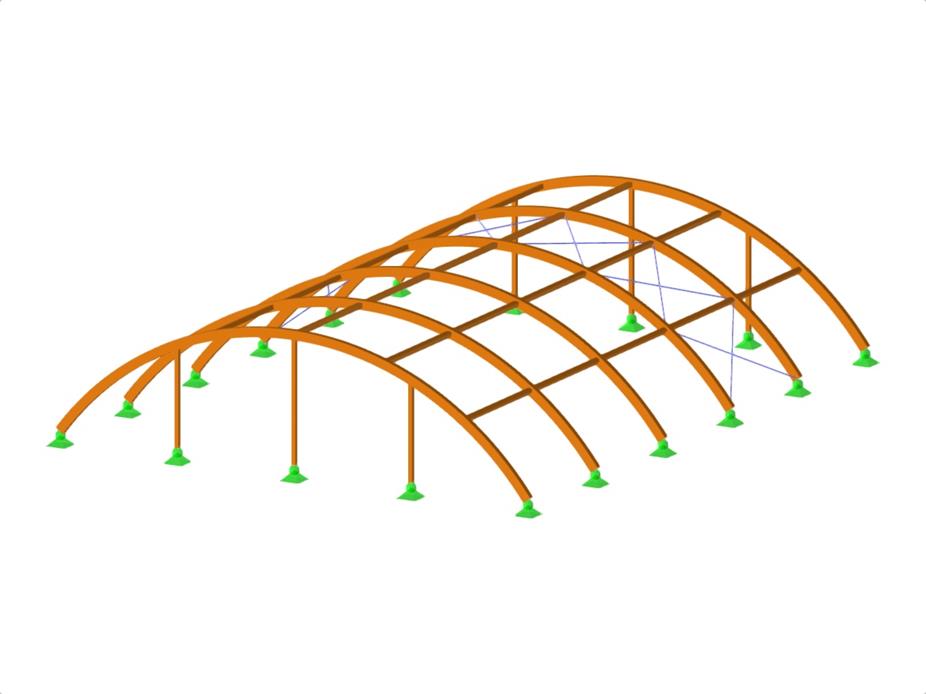

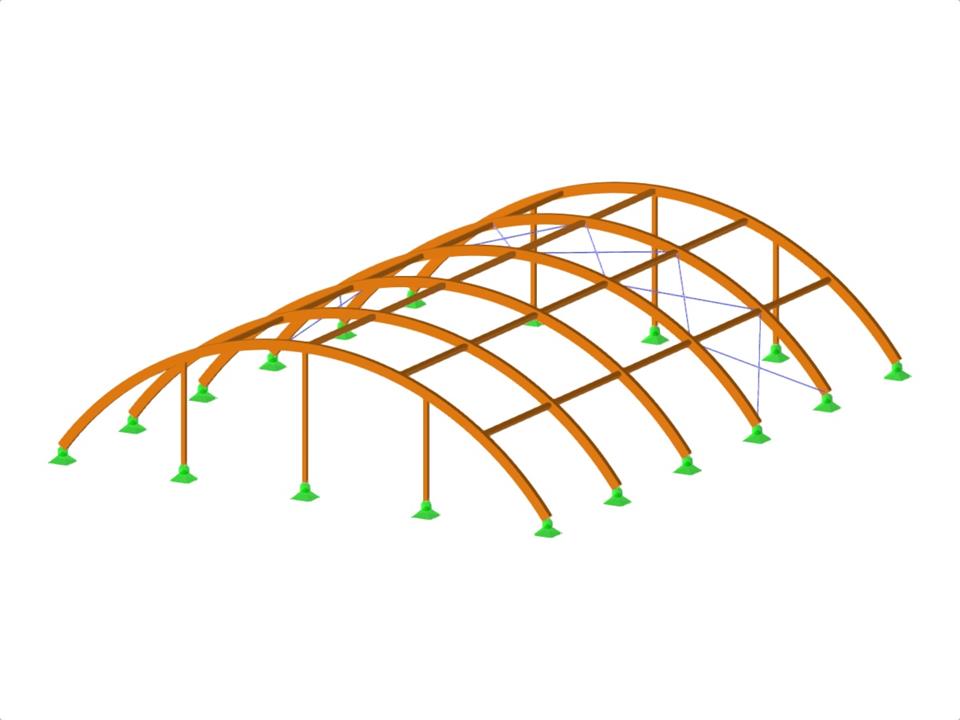

Model used in KB 1906 | Balanced and Unbalanced Snow Loads for Curved Roofs in RFEM 6 According to ASCE 7-22
Balanced and Unbalanced Snow Loads for Curved Roofs | ASCE 7-22
| Number of Nodes | 53 |
| Number of Lines | 83 |
| Number of Members | 83 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 9 |
| Number of Result Combinations | 0 |
| Total Weight | 7.823 tons |
| Dimensions (Metric) | 19.507 x 12.192 x 24.384 m |
| Dimensions (Imperial) | 64 x 40 x 80 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
