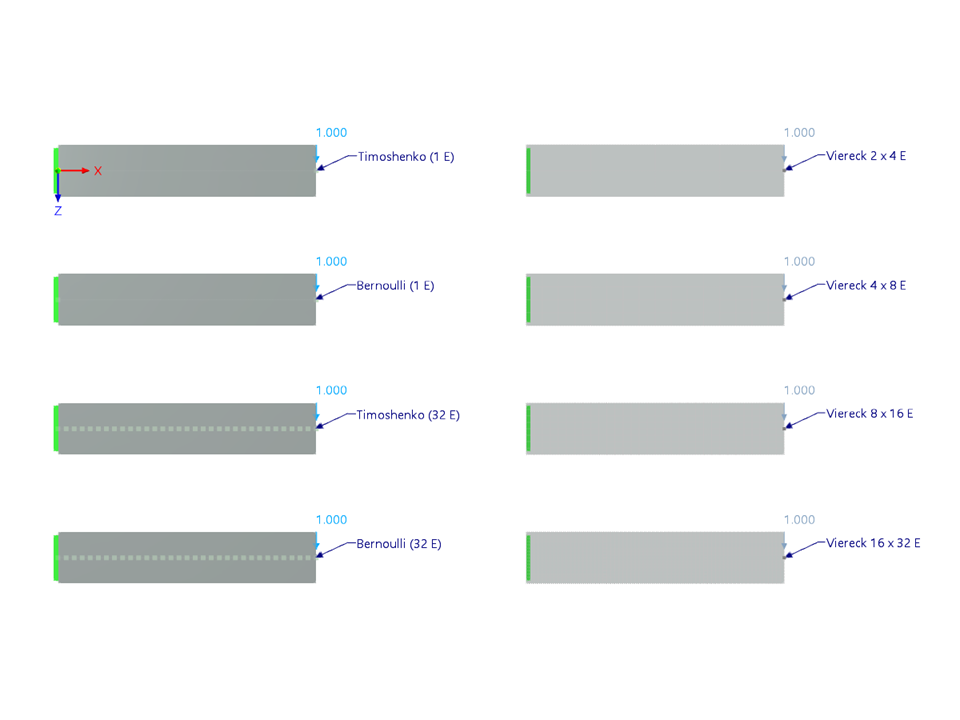

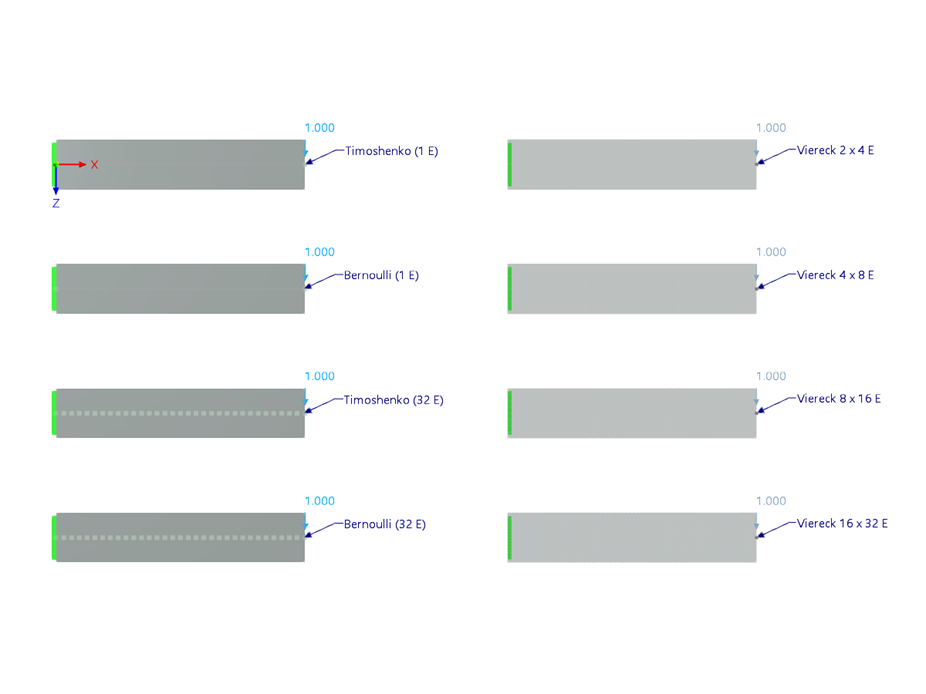

The model consists of a 100 mm long aluminum cantilever with a modulus of elasticity of 70 GPa. The cross-section is a flat upstanding sheet with a height of 20 mm and a width of 1 mm. A load of 1 kN is applied at the end of the cantilever. The modeling was carried out using beam elements, with (Tomoshenko) and without consideration of shear distortion (Bernoulli), and using quadrangle surface elements with different mesh refinements.
This model is used as an example in the technical article about mesh convergence.
Model Used in
KB 001914 | Mesh Convergence Study | Cantilever Beam
| Number of Nodes | 108 |
| Number of Lines | 31 |
| Number of Members | 4 |
| Number of Surfaces | 4 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.000 tons |
| Dimensions (Metric) | 0.300 x 0.170 x 0.000 m |
| Dimensions (Imperial) | 0.98 x 0.56 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
