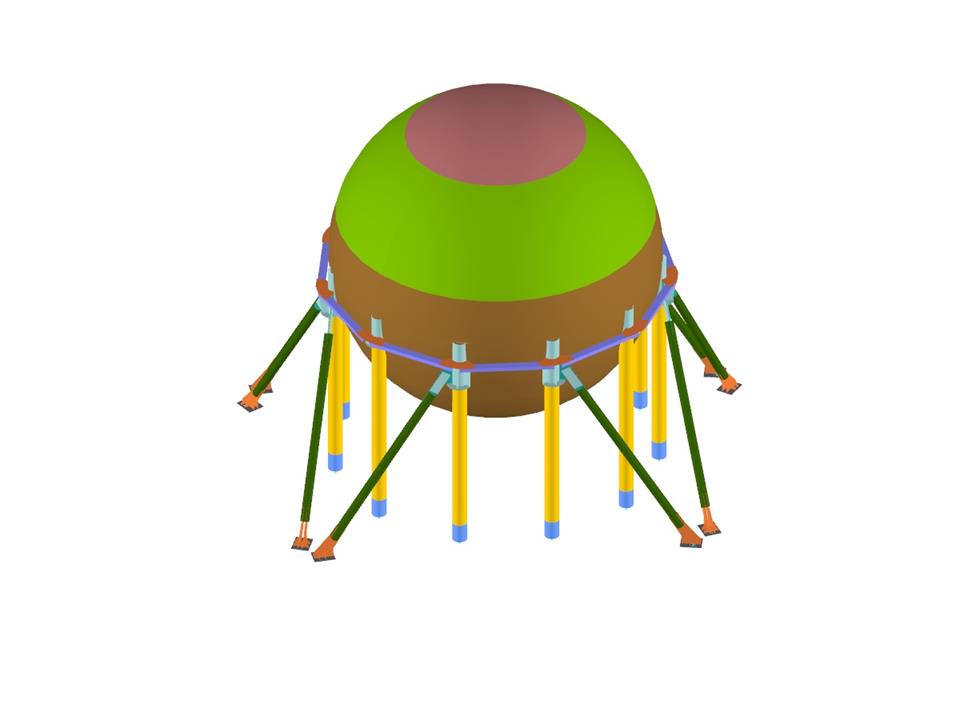

The spherical tank is supported only by eleven steel columns that are welded to the shell and connected by a bolted ring that runs all the way around. The stiffeners ensure horizontal stability under wind and earthquake loads. A 3D model was created using RFEM for structural and dynamic calculations, with all components modeled as surface elements. The structure-soil interaction is realized by elastic supports that transfer the stiffnesses of the pile foundations in all directions of the displacements. For more information and references, see Cedeti ingénierie.
5 star | ||
4 star | ||
3 star | ||
2 star | ||
1 star |
Butadiene Spherical Tank Structure
Number of Nodes | 3636 |
Number of Lines | 3324 |
Number of Members | 894 |
Number of Surfaces | 634 |
Number of Load Cases | 3 |
Number of Load Combinations | 1 |
Number of Result Combinations | 4 |
Total Weight | 506,772 t |
Dimensions (Metric) | 30.695 x 30.603 x 25.273 m |
Dimensions (Imperial) | 100.71 x 100.4 x 82.92 feet |
Program Version | 5.07.13 |
