Since the structure is not an unusual shape or size, the ALBYR Structures team was able to model the 3D building in RFEM to generate the wind and snow loads automatically. The geometry of the frames has been completely parameterized to allow for quick changes to the model. The engineers generated the crane load cases in Excel for direct import into RFEM. Additionally, the RFEM add-on modules RF-DYNAM Pro were used to generate seismic load cases.
ALBYR Structures also utilized the RF-STABILITY add-on module to calculate exact column effective lengths, which were imported into the RF-STEEL EC3 design module. Afterwards, it was possible to verify and optimize all members with the RF-STEEL EC3 design module.
ALBYR Structures, Bordeaux, France
www.albyr.fr

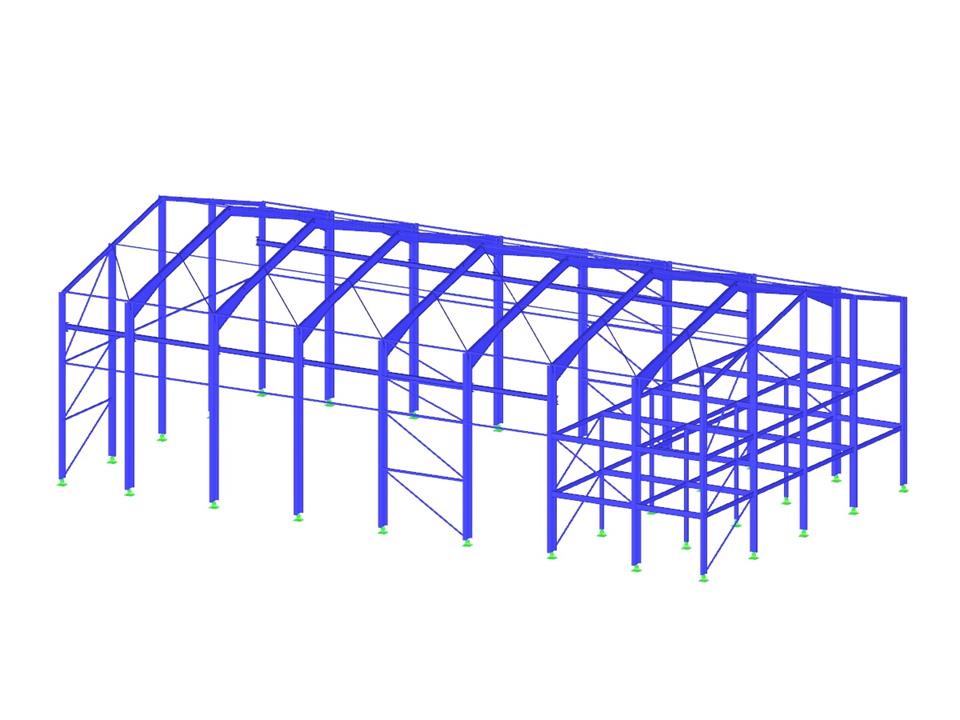

3D model of the building in RFEM (© Albyr)
ALBYR Structures also utilized the RF-STABILITY add-on module to calculate exact column effective lengths, which were imported into the RF-STEEL EC3 design module. Afterwards, it was possible to verify and optimize all members with the RF-STEEL EC3 design module.
ALBYR Structures, Bordeaux, France
www.albyr.fr
3D model of the building in RFEM (© Albyr)
Industrial Building
No Download Possible
Customer Project / View Only
| Number of Nodes | 214 |
| Number of Lines | 258 |
| Number of Members | 258 |
| Number of Load Cases | 101 |
| Number of Load Combinations | 3 |
| Number of Result Combinations | 30 |
| Total Weight | 53.968 tons |
| Dimensions (Metric) | 37.560 x 20.500 x 12.580 m |
| Dimensions (Imperial) | 123.23 x 67.26 x 41.27 feet |
| Program Version | 5.20.01 |
