Roller Bearing
  • Description
  • Reviews (0)

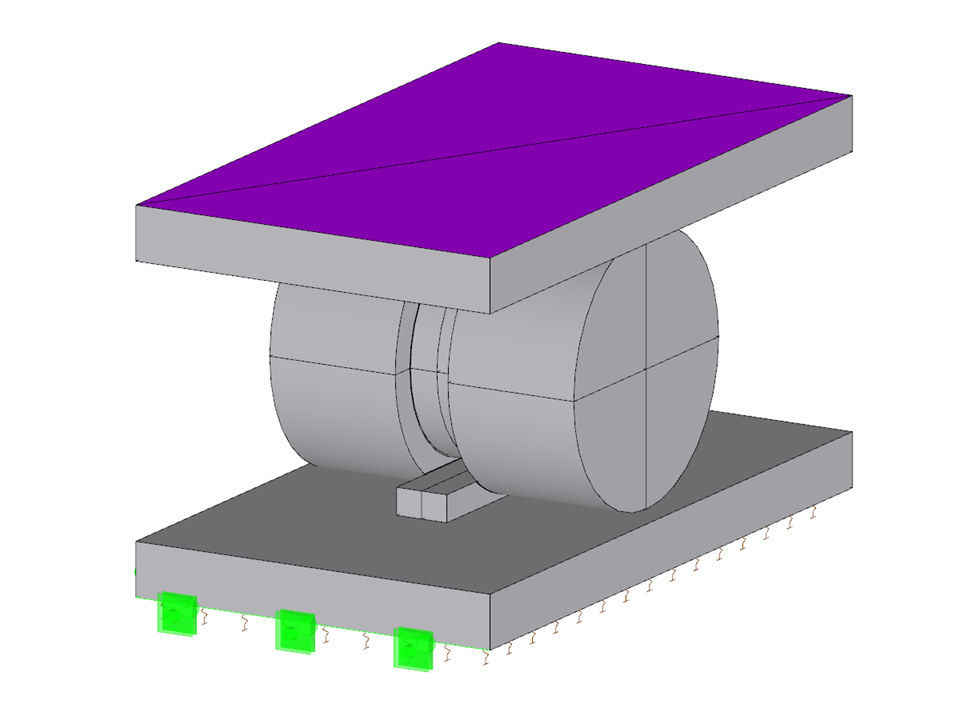

The model includes a steel structure with a roller bearing modeled using solid elements. The structure includes a cleat and roller bearings designed for different load effects and rotational movements. This modeling provides a detailed analysis of the mechanical properties and allows for the analysis of bearing stresses and deformations under different load conditions.

Model Used in
Overall
0 out of 5 stars
This page has 0 user ratings.
5 star
4 star
3 star
2 star
1 star
(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

Roller Bearing with Cleat

Number of Nodes 162
Number of Lines 229
Number of Surfaces 140
Number of Solids 26
Number of Load Cases 2
Total Weight 0.146 t
Dimensions (Metric) 0.500 x 0.284 x 0.280 m
Dimensions (Imperial) 1.64 x 0.93 x 0.92 feet
Program Version 5.24.01

You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
