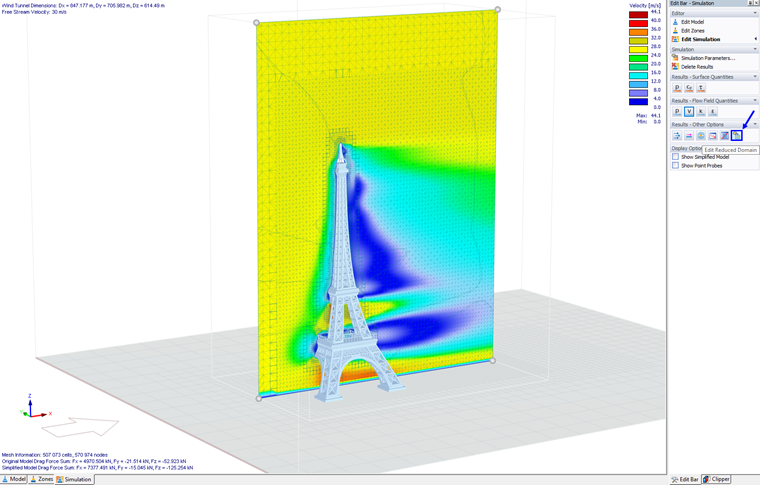

W przypadku dużych modeli graficzna ocena wyników skojarzonych z określonymi lokalizacjami może być trudna. The "Show Reduced Domain" option enables you to view the results of a limited area within the wind tunnel. Activate this feature in the "Display Options" of the panel, where you can also access the settings.
This option is available for all types of results except surface pressure. You can use it to confine the graphical output to relevant parts of the model.

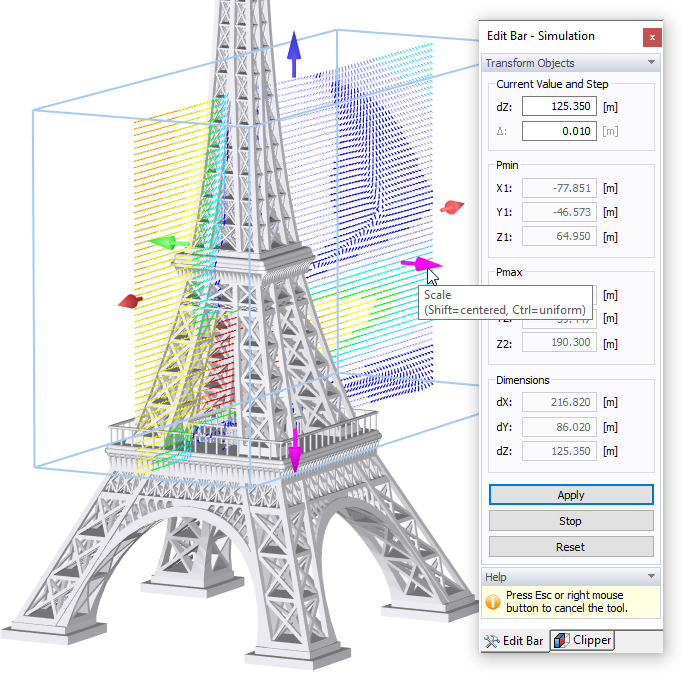

To adjust the size of the reduced domain box, select the "Edit Reduced Domain" option, the
button, in the "Results" section of the panel. You can then modify the dimensions in the panel that provides the corresponding options. As an alternative, use the arrows displayed in the domain box to resize it. The functionality corresponds to the features described in Chapter Wind Tunnel: By holding the "Shift" key while moving an arrow, the box is modified symmetrically in the respective direction. By holding the [Ctrl] key, you can scale the area up or down uniformly in all three directions.
