Defining Lateral Supports with Different Positions

I want to define lateral supports along the structural component axis, which sometimes act on the upper flange and sometimes on the lower flange. However, it is only possible to select one item for each member. How can I create the entry?

Answer:

To add different supports to a structural component, it must consist of several members and the design must be carried out using a set of members. It is then possible to assign different parameters to the individual members. The video shows the procedure.

FAQ|003494
EN-US | Flag FAQ
[EN] FAQ 003494 | I would like to define lateral supports along the axis of a structural component that ...

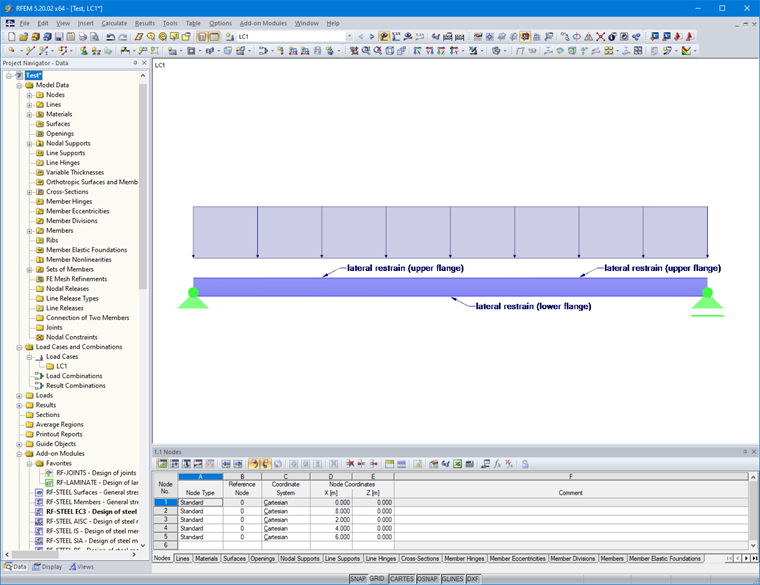

RFEM Model with Layout of Lateral Restraints
RFEM Model with Layout of Lateral Restraints
Author

Mr. Rehm is responsible for developing products for timber structures, and he provides technical support for customers.
