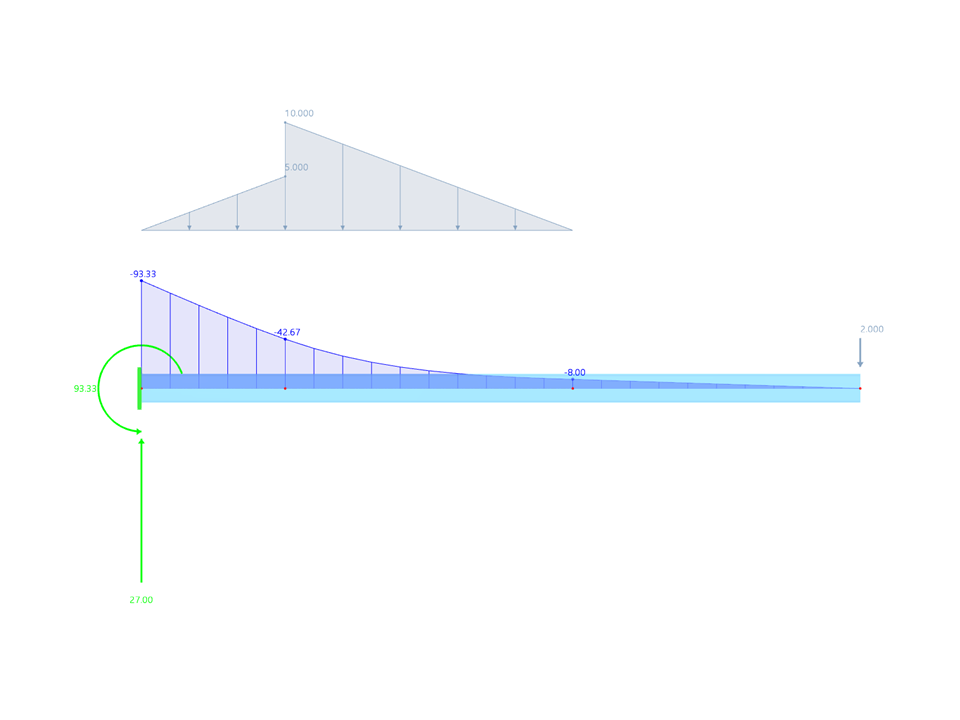

Calculation of shear force and bending moment on a steel cantilever beam.
Steel Cantilever Beam
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Load Cases | 1 |
| Total Weight | 0.663 tons |
| Dimensions (Metric) | 10.250 x 0.500 x 0.500 m |
| Dimensions (Imperial) | 33.63 x 1.64 x 1.64 feet |
| Program Version | 5.35.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
