Download the model of a reinforced concrete building here, and open it with the FEA software RFEM.
This model is used in the free webinar "New Features in RFEM 6 and RSTAB 9" on October 15, 2021 (October 13, 2021 in German).
Model Used in

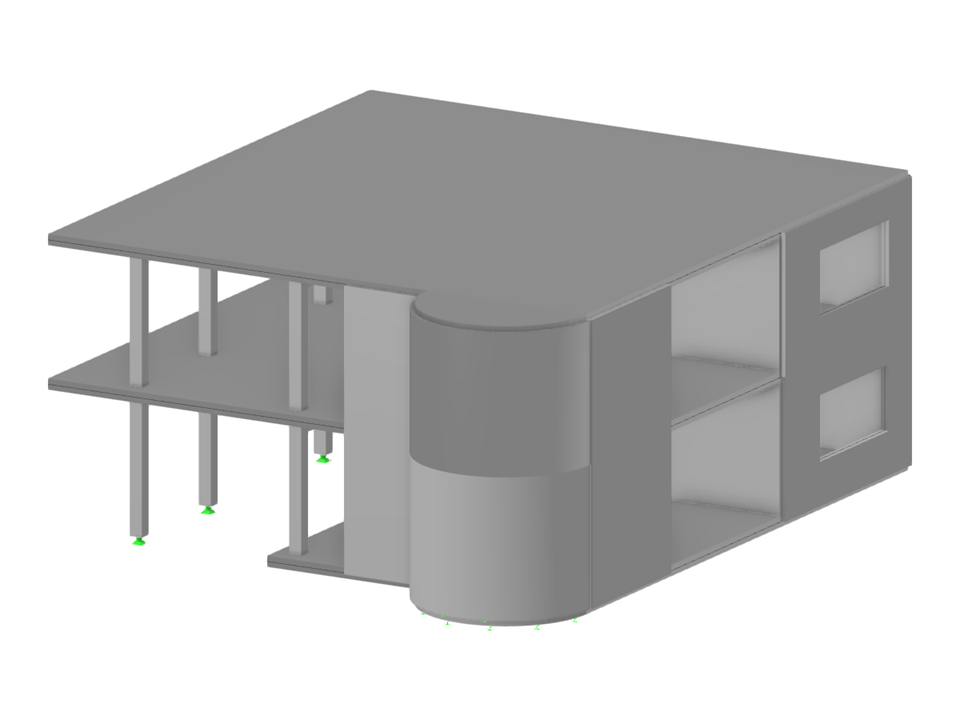

Reinforced Concrete Building
| Number of Nodes | 72 |
| Number of Lines | 94 |
| Number of Members | 28 |
| Number of Surfaces | 18 |
| Number of Solids | 0 |
| Number of Load Cases | 5 |
| Number of Load Combinations | 1 |
| Number of Result Combinations | 0 |
| Total Weight | 460.349 tons |
| Dimensions (Metric) | 13.500 x 6.500 x 16.000 m |
| Dimensions (Imperial) | 44.29 x 21.33 x 52.49 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
