Different Negative Moments on Connection Corners
  • Description
  • Reviews (0)

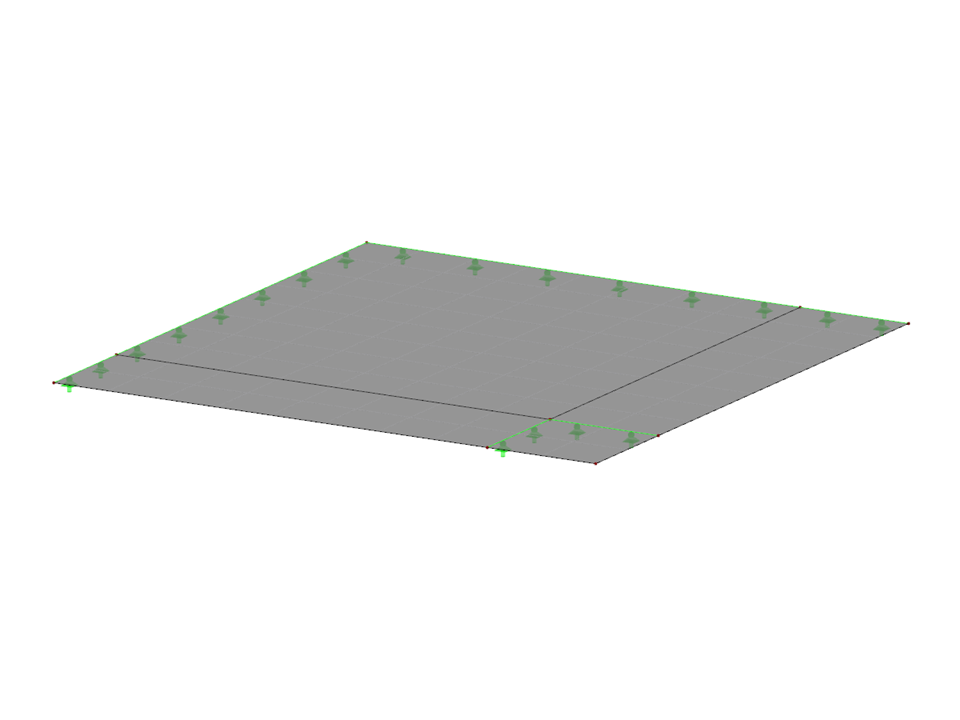

The four equally loaded plates show different negative moments at the point of support, which raises the question of whether this is an error. In fact, the different smoothing of the results is due to the set interpolation on a slab-by-slab basis, which does not account for adjacent slabs. This phenomenon shows how the smoothing settings can affect the interpretation of the structural outputs and thus engineering conclusions. Analysis of internal forces and stresses with respect to smoothing is crucial for accurate engineering design.

Model Used in
Overall
0 out of 5 stars
This page has 0 user ratings.
5 star
4 star
3 star
2 star
1 star
(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

Plate Interaction with Different Moments

Number of Nodes 9
Number of Lines 12
Number of Surfaces 4
Number of Load Cases 2
Number of Load Combinations 8
Number of Result Combinations 4
Total Weight 11.150 t
Dimensions (Metric) 5.000 x 5.000 x 0.000 m
Dimensions (Imperial) 16.4 x 16.4 x 0 feet
Program Version 5.25.02

You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
