In the add-on modules RF-/TIMBER Pro, RF-/TIMBER AWC, and RF-/TIMBER CSA, it is possible to consider the resulting deformation of a member or set of members.
This model was used to explain the SLS designs, taking into account the resulting deformation.
Model Used in

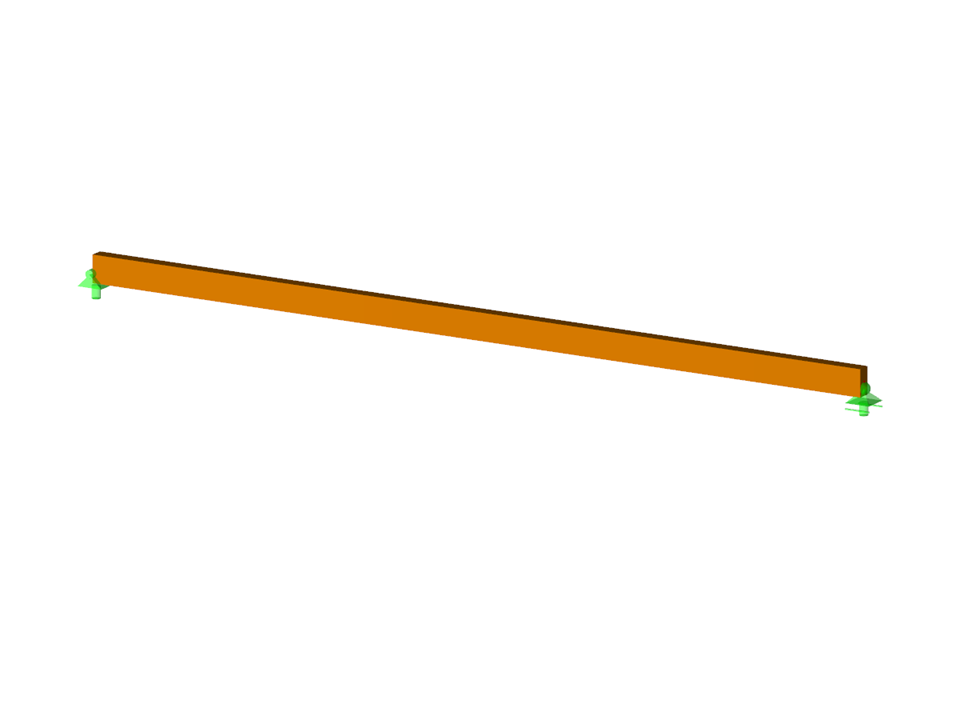

Timber Beam
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 4 |
| Number of Result Combinations | 4 |
| Total Weight | 0.050 tons |
| Dimensions (Metric) | 6.000 x 0.000 x 0.000 m |
| Dimensions (Imperial) | 19.69 x 0 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
