SLS Checks Taking into Account Resulting Deformation

In the RF-/TIMBER Pro, RF-/TIMBER AWC, and RF-/TIMBER CSA add-on modules, you can consider the resulting deformation of a member or set of members. In addition to the local directions y and z, you have the option "R." This allows you to compare the total deflection of a girder to the limit values given in the standards.

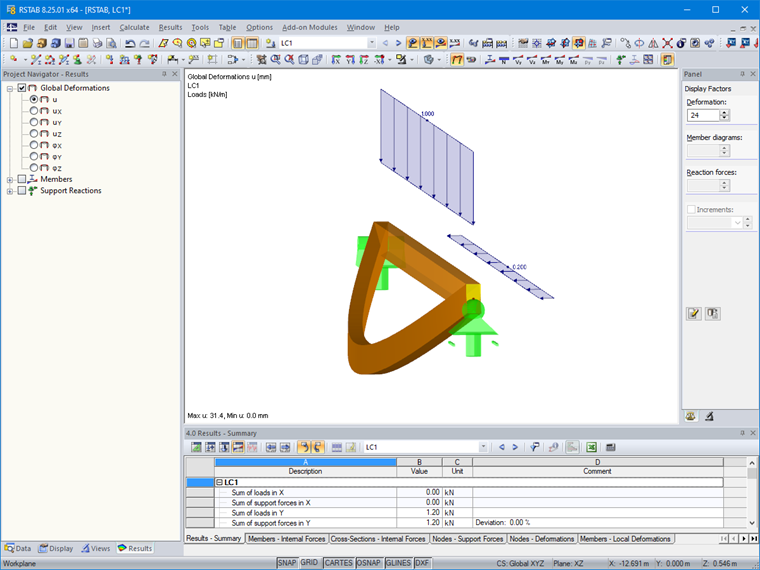

Resulting Deformation in RSTAB
Resulting Deformation in RSTAB

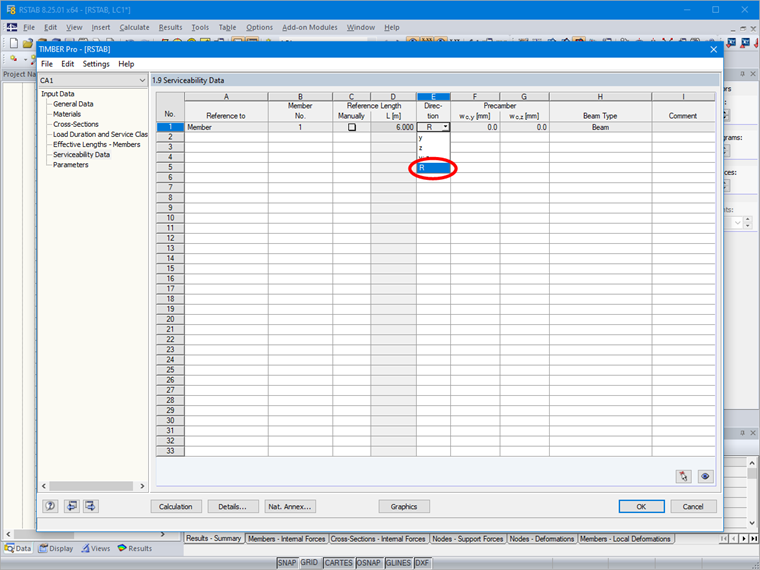

Relation of Deformation to Resultant in RF-/TIMBER Pro
Relation of Deformation to Resultant in RF-/TIMBER Pro
