Download the model of a column base plate with contact solid (without bolts) here, and open it with the FEA software RFEM.
This model is used in the free webinar "The Most Common User Errors with RFEM and RSTAB" presented in the German version on January 28, 2021 (February 4, 2021 in English).
Model Used in

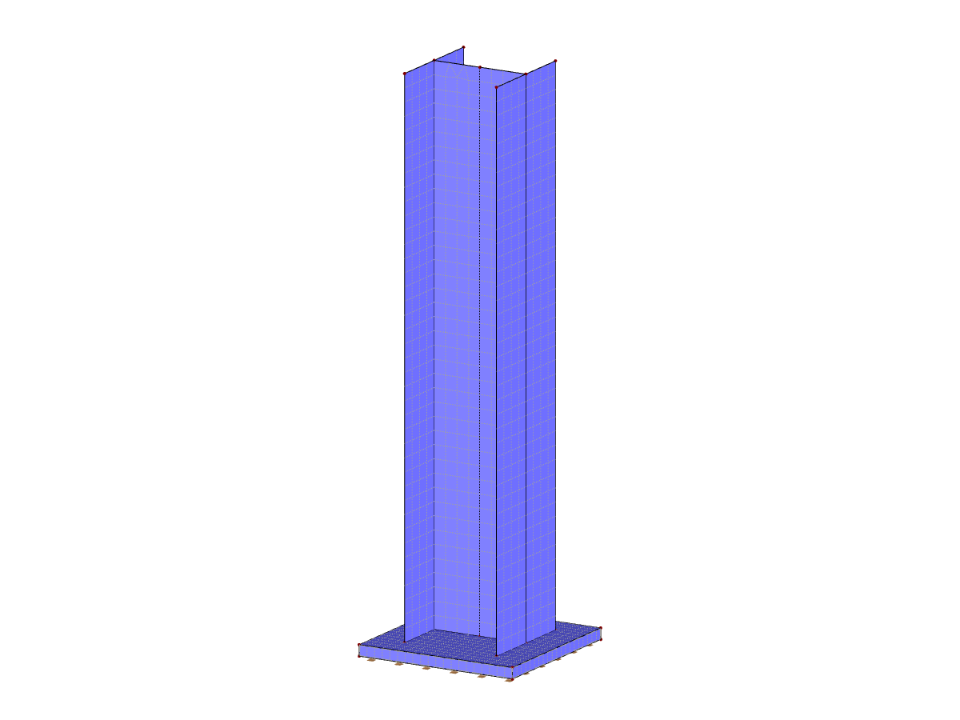

Contact Solid Under Column Base Plate (Without Bolts)
| Number of Nodes | 29 |
| Number of Lines | 34 |
| Number of Members | 1 |
| Number of Surfaces | 11 |
| Number of Solids | 1 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.055 tons |
| Dimensions (Metric) | 0.300 x 1.020 x 0.300 m |
| Dimensions (Imperial) | 0.98 x 3.35 x 0.98 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
