The house is intended to be used as a place for presentations and events that are associated with matters of gold and silver, as well as design.
ISIN Architekten, award winner of a competition procedure, was commissioned with the design. The engineering office Klöckner created the static calculation of the facade support structure with RSTAB and that of the facade cassettes with RFEM. In the course of a wind report from IFI GmbH in Aachen, Germany, the wind loads to be applied were determined on a model in the wind tunnel.
Structural Analysis for Facade Structure
Ingenieurbüro Klöckner GmbH, Nistertal, Germany

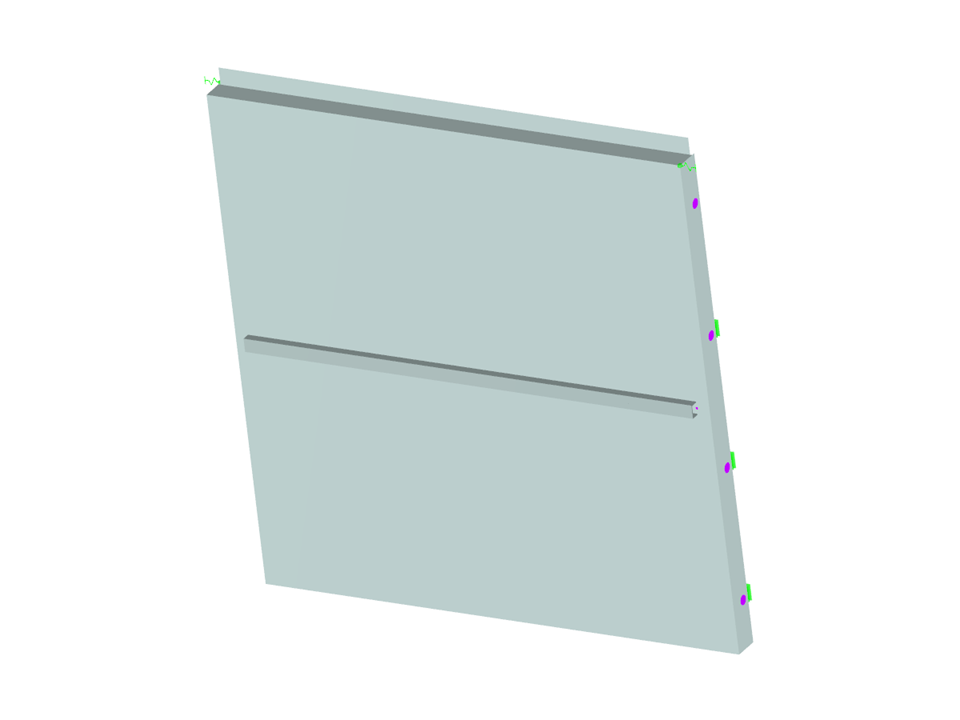

3D model (© Klöckner GmbH)
Facade Structure
Number of Nodes | 103 |
Number of Lines | 67 |
Number of Members | 23 |
Number of Surfaces | 23 |
Number of Load Cases | 4 |
Number of Load Combinations | 8 |
Number of Result Combinations | 2 |
Total Weight | 0.024 tons |
Dimensions (Metric) | 1.560 x 0.435 x 1.510 m |
Dimensions (Imperial) | 5.12 x 1.43 x 4.95 feet |
Program Version | 5.02.00 |
