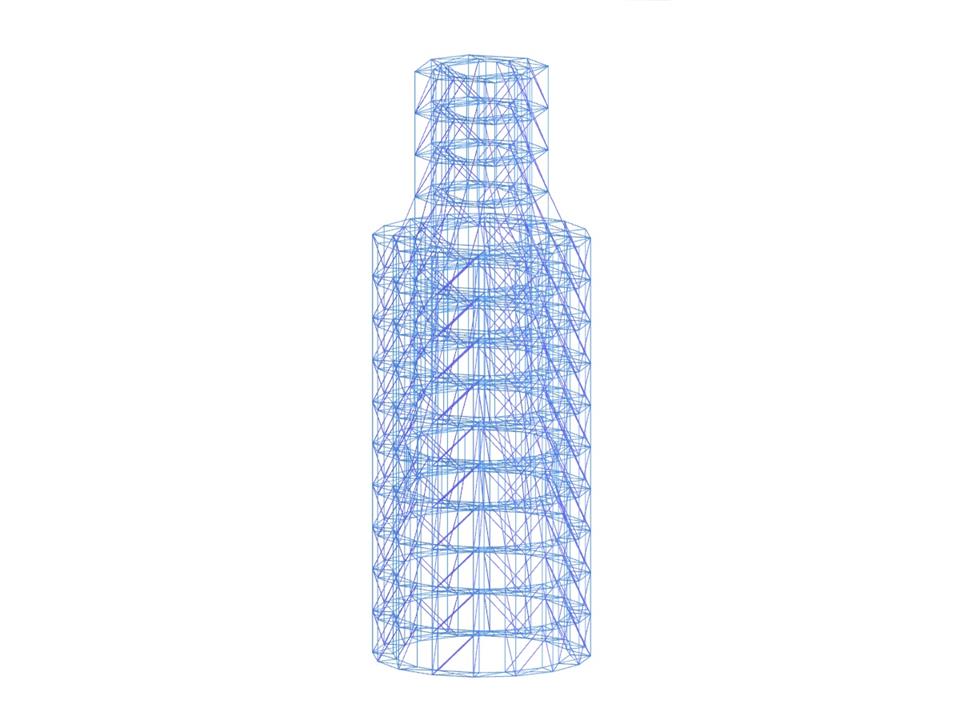

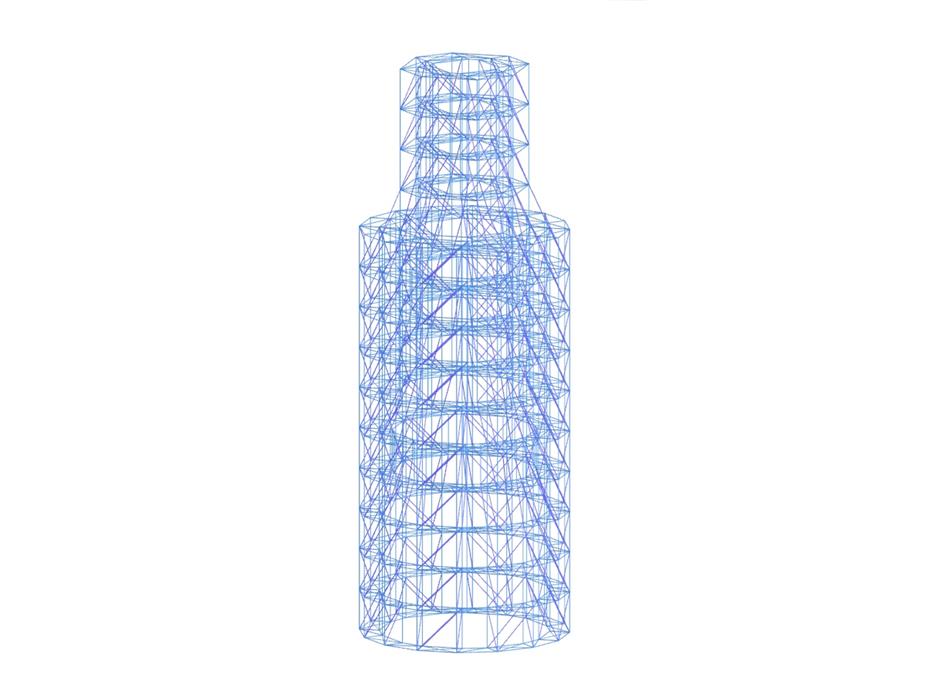

A specially designed scaffold was developed for the renovation of the steeple of the St. Martinus parish in Kerpen. The model shows a modular scaffold construction, polygonal as a 16-sided structure from approx. +40 m to +60 m and as an 8-sided structure from +60 m to +70 m. The assembly with almost no pressure anchoring and the plane-based cladding that takes into account the wind loads is remarkable. The 3D model also visualizes the structural design of the engineering office Ingenieurbüro Klimpel from Bochum.
Part of a project with a contract volume of approx. €850,000.
5 star | ||
4 star | ||
3 star | ||
2 star | ||
1 star |
Scaffold Structure for Steeple in Kerpen
Number of Nodes | 721 |
Number of Members | 2600 |
Number of Load Cases | 3 |
Number of Load Combinations | 1 |
Total Weight | 24,774 t |
Dimensions (Metric) | 10.225 x 10.225 x 28.100 m |
Dimensions (Imperial) | 33.55 x 33.55 x 92.19 feet |
Program Version | 7.04.00 |
