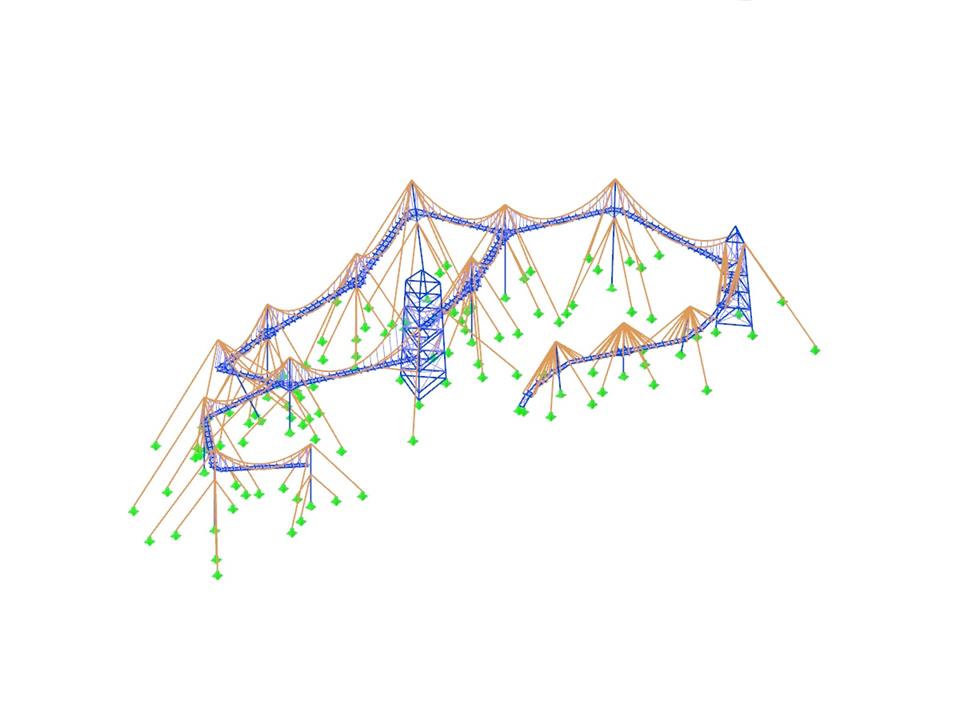

The Skywalk Allgäu is an impressive 500 m long walkway, which is distributed between 15 and 30 m above the ground, between the treetops of the Allgäu Alps. The circular route, at about 1000 m above sea level, combines innovative cable and suspension bridge structures, supported by 14 cable-stayed masts. A 50-meter-high lookout tower allows for a wide view of the Alps, the Alpine foothills, and Lake Constance. The structural analysis of the steel structure was carried out using RFEM from Meyer+Schubart (© Meyer+Schubart), Wunstorf.
Model Used in
Overall
This page has 0 user ratings.
| 5 star | ||
| 4 star | ||
| 3 star | ||
| 2 star | ||
| 1 star |
Structure of Skywalk Allgäu
No Download Possible
Customer Project / View Only
| Number of Nodes | 1578 |
| Number of Lines | 2965 |
| Number of Members | 2965 |
| Number of Load Cases | 42 |
| Number of Load Combinations | 252 |
| Number of Result Combinations | 6 |
| Total Weight | 306.084 t |
| Dimensions (Metric) | 223.329 x 163.456 x 79.420 m |
| Dimensions (Imperial) | 732.71 x 536.27 x 260.56 feet |
| Program Version | 5.01.00 |
