Exporting Structural Deformed Shape Under CFD from RFEM to RWIND

The deformation of the wind-sensitive structures can significantly alter the aerodynamics characteristics. Deformed shapes often have more surface irregularities, increasing drag. The flow of air over an object is smoother on streamlined surfaces, while deformed or jagged shapes tend to disrupt airflow, creating turbulence.

A tensile surface structure is considered as a case study for presenting the current feature. The original shape after form-finding analysis in RFEM 6 is shown in Figure 1.

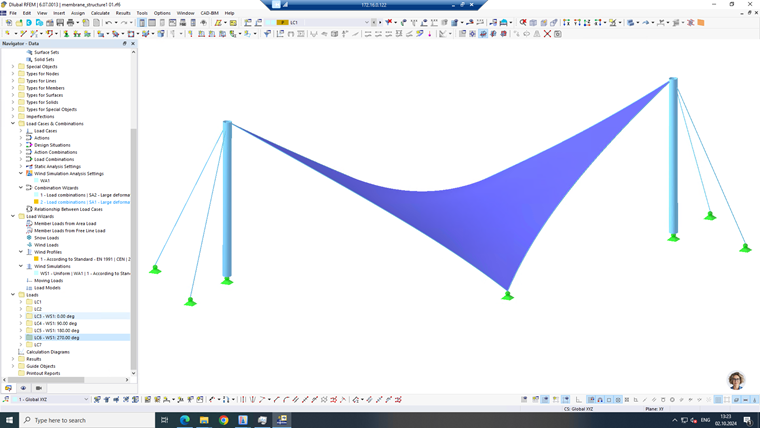

Figure 1: The Original Shape in RFEM 6

The original shape can be transferred to RWIND for wind simulation, as shown in Figure 2.

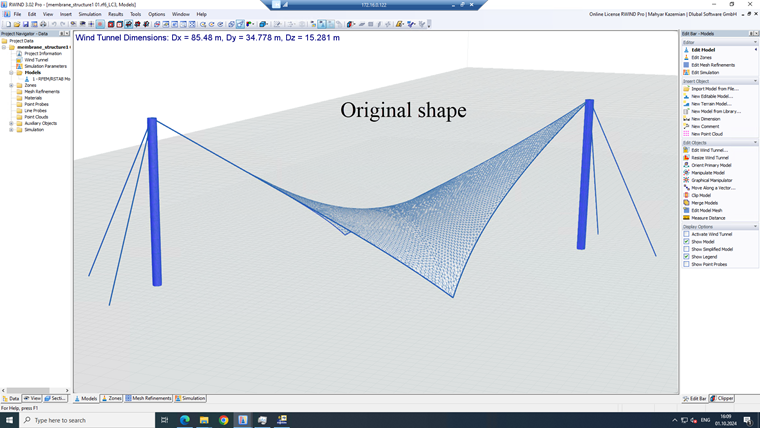

Figure 2: Case Study Example (Tensile Surface)

After the CFD simulation, the deformed shape under wind load is obtained in Figure 3.

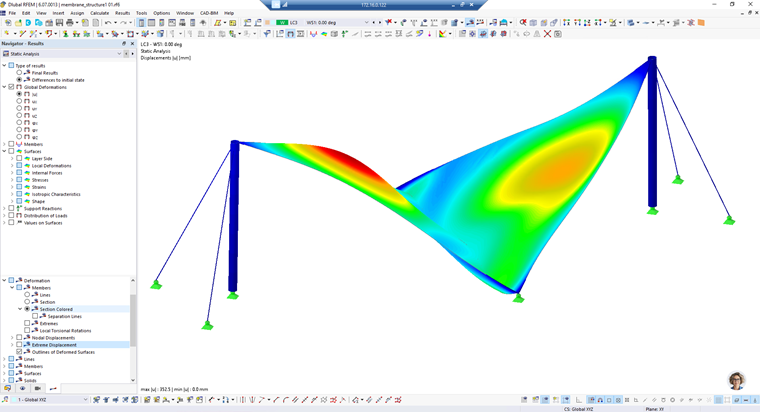

Figure 3: The Structural Deformed Shape in RFEM

By considering the initial condition (Figure 4), it is possible to transfer the deformed shape of the previous load case as initial state for the corresponding load case in RWIND (Figure 5).

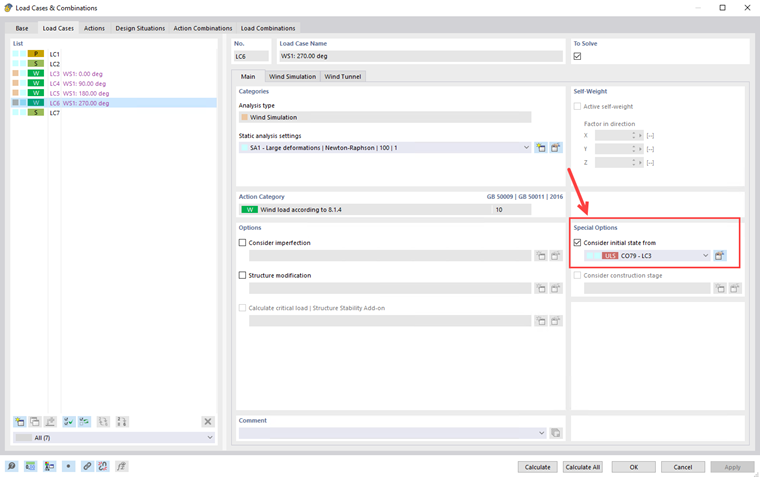

Figure 4: Using Initial Condition for Wind Simulation

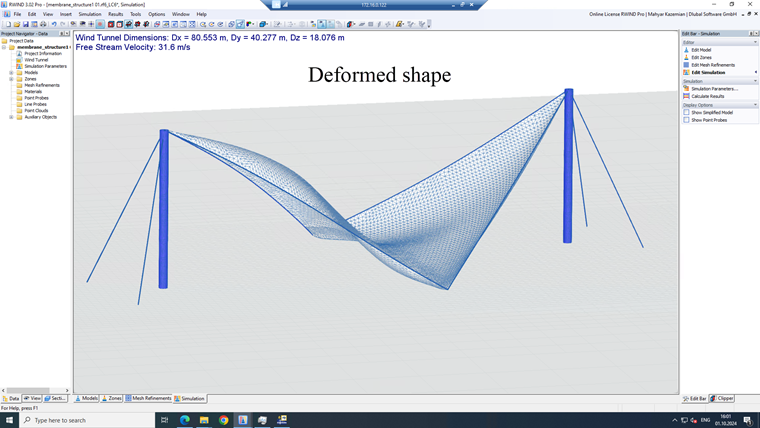

Figure 5: Deformed Shape in RWIND

• 3D Viewer | Google
• 3D Viewer | Babylon
• Virtual Reality

1385x

77x

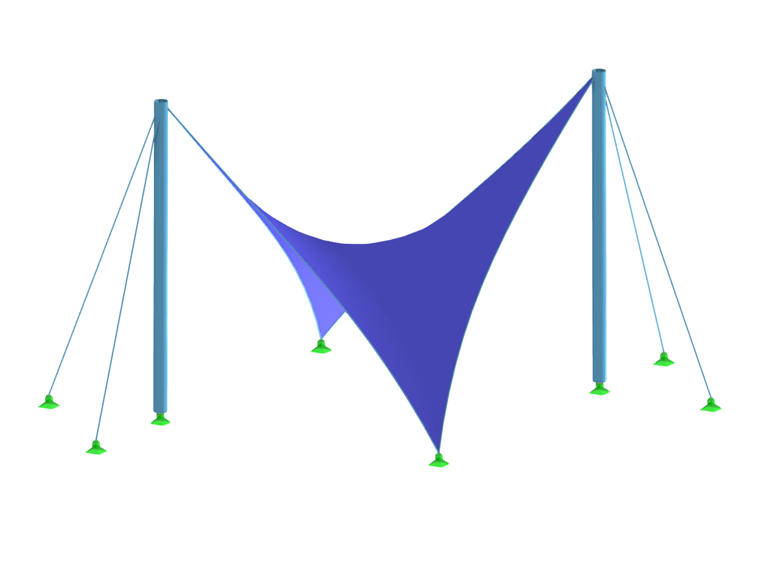

Membrane Structure with Two Columns
