This model implements a membrane roof that was created using RFEM. The wind load was imported using the wind simulation program RWIND, which allows realistic structural loads to be modeled. It is ideal for detailed analysis of behavior under wind load and shows the effective use of innovative analysis methods. The model provides precise simulation results for optimizing building structures.
Model Used in

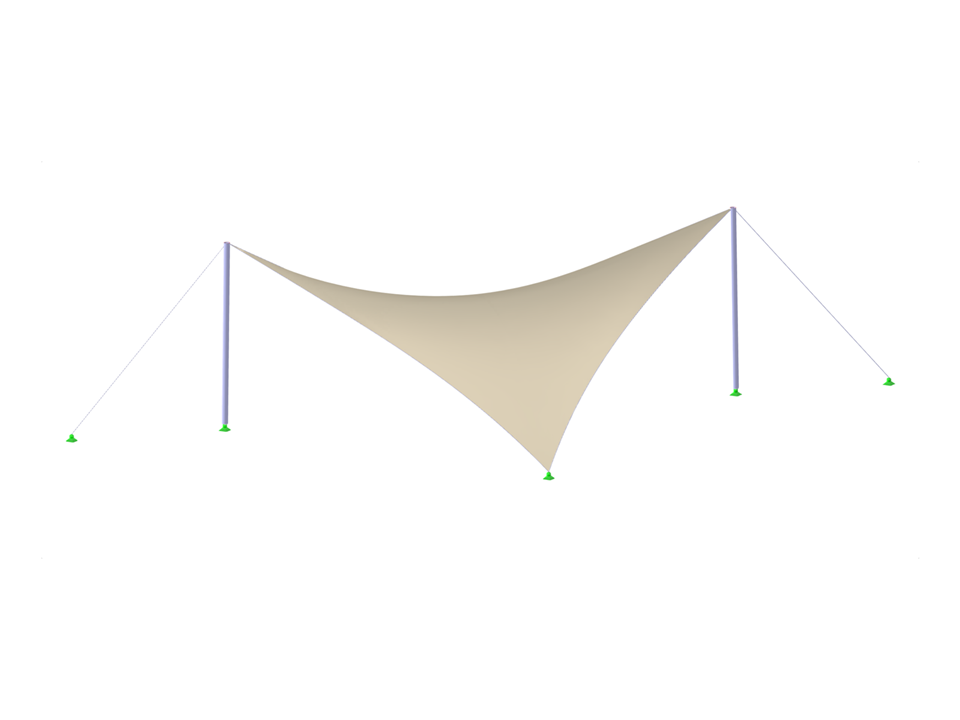

Membrane Roof with Wind Simulation
| Number of Nodes | 8 |
| Number of Lines | 9 |
| Number of Members | 8 |
| Number of Surfaces | 2 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0,530 t |
| Dimensions (Metric) | 16,000 x 5,000 x 16,000 m |
| Dimensions (Imperial) | 52.49 x 16.4 x 52.49 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
